Specifications
Model: 6kg Light Rail (National Standard)
Standard: GB (Chinese National Standard)
Material: U71Mn, U75V
Length: 6–12m, 12.5–25m, or customized lengths upon request
6kg Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
6kg | 5.98 | Q235 | 6-12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
25.4 | 50.8 | 50.8 | 4.76 |

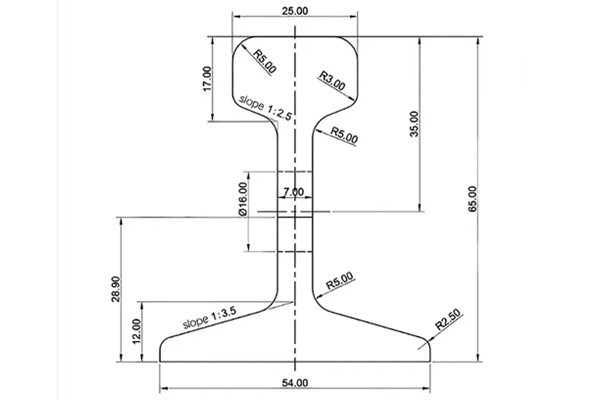

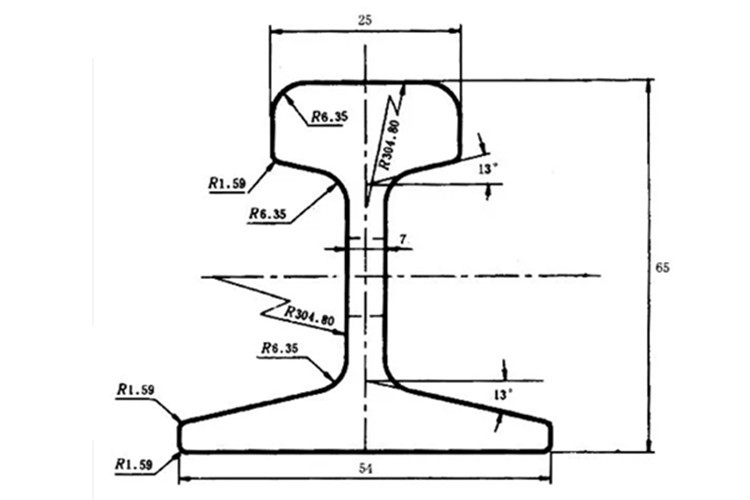

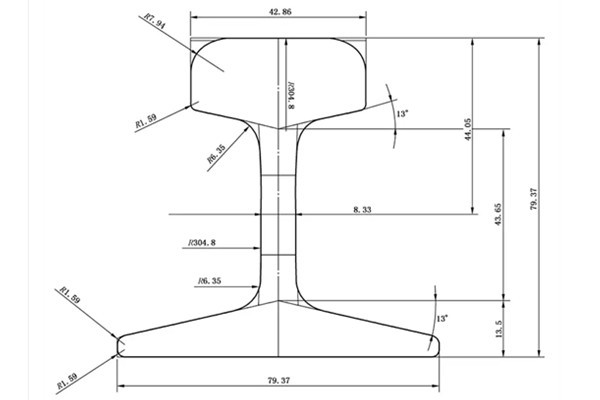

Drawings
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a price quote.
