Specifications
Model: JIS 10kg
Standard: JIS E 1101
Weight: 10.1 kg/m
Material: Q235B (low-carbon steel) or 55Q (medium-carbon steel)
Length: 6–12m, 12.5–25m, or customized lengths upon request
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
10kg | 66.67 | 66.67 | 34.13 | 6.35 | 10.10 |

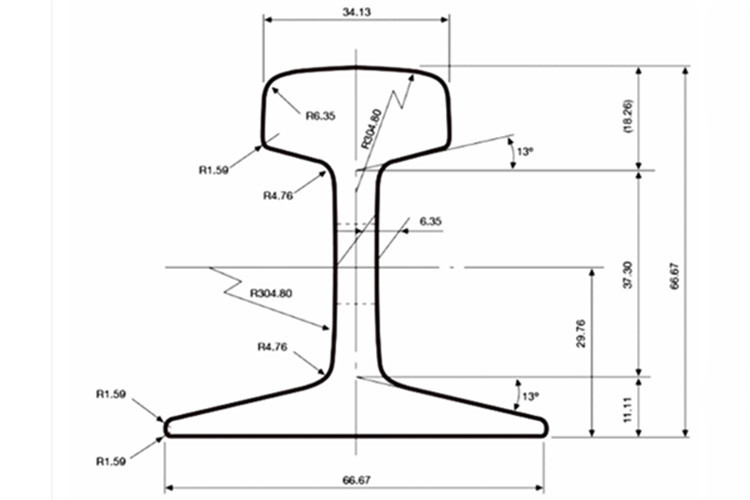

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The JIS 10kg rail is a type of light rail defined by Japanese Industrial Standards (JIS E 1103-91 / JIS E 1101-93). It is widely used in light industrial systems, mining tunnels, and narrow-gauge railways. It offers a lightweight, cost-effective solution for light rail applications, making it particularly suitable for mining, tunneling, and tourism-related settings.
Hanzi offers a wide range of rails—including light rails (such as the JIS 10kg rail), heavy rails, and crane rails—available in various standards and specifications.
