Specifications
Model: UIC54 rail
Standard: UIC860-O
Weight: 54.43 kg/m
Material: 900A/1100
Length: 6–12m, 12.5–25m, or customized lengths upon request
Type of Rail | Standard | Dimensions (mm) | Section S | Mass m | ||||
H | B | C | D | E | cm² | kg/m | ||
54E1 (UIC54) | EN 13674 - 1 | 159,00 | 140,00 | 70,00 | 49,40 | 16,00 | 68,77 | 54,77 |

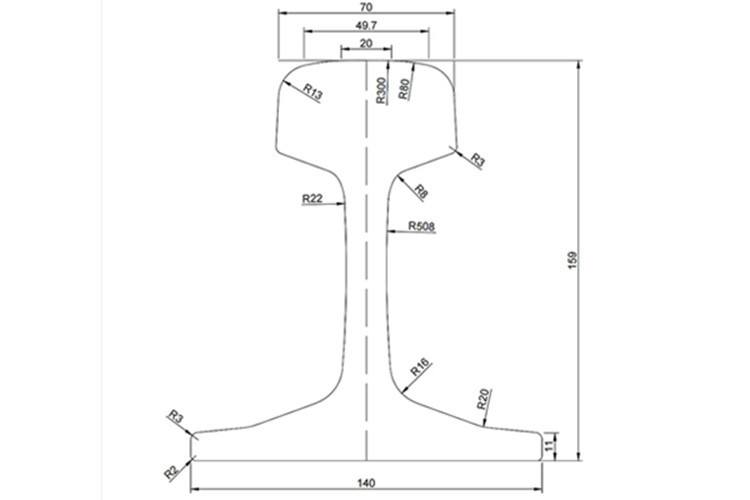

Drawings
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The UIC54 rail is a heavy-duty rail profile compliant with the UIC860-O standard, with a weight of 54.43 kg/m. The 54E1 rail is one of the most widely used heavy rail profiles, extensively applied in various railway and industrial infrastructure projects.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the UIC54), and crane rails—available in various standards and specifications.
