Specifications
Model: UIC60 rail
Standard: EN 13674-1
Weight: 60.21 kg/m
Material: 900A/1100
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
UIC 60 | 74.3 | 172 | 150 | 16.5 | 60.21 | 900A/1100 | 12-25 |

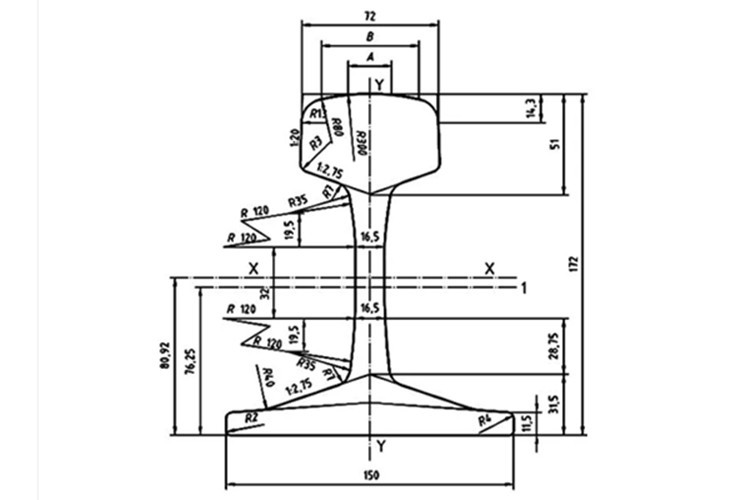

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The UIC60 rail is a heavy-duty rail compliant with the EN 13674-1 standard, weighing 60.21 kg per meter. Suitable for medium-to-heavy traffic loads, the 60E1/UIC 60 rail is widely used in high-speed railways, urban transit systems, subways, and industrial railways (such as in mining operations), making it a preferred choice for global railway infrastructure.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the UIC60), and crane rails—available in various standards and specifications.
