Specifications
Model: ASCE 30
Standard: ASTM A1/AREMA
Weight: 14.88 kg/m
Material: 700
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |

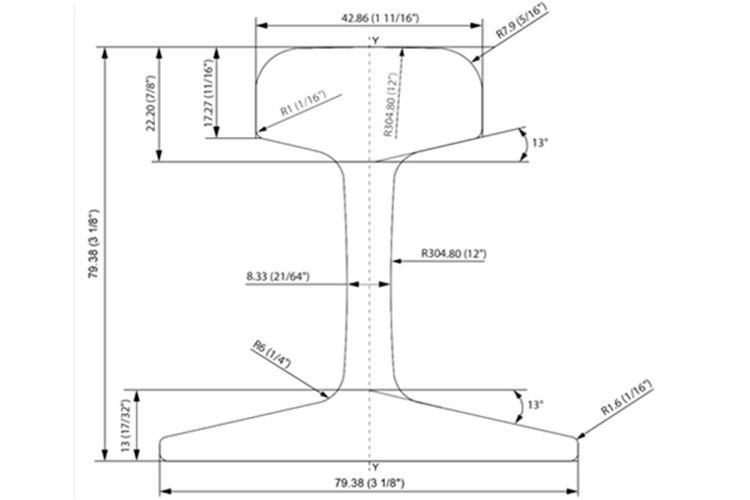

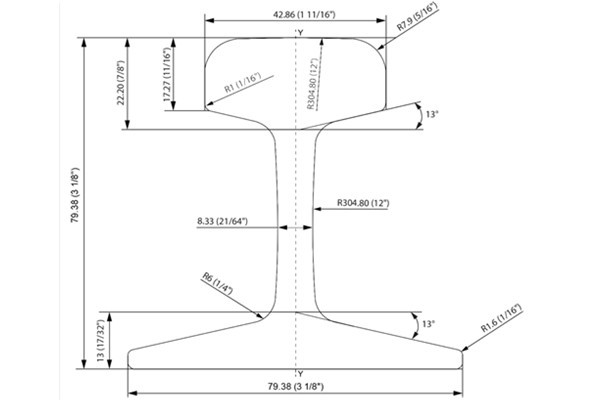

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The ASCE 30 light rail is a high-strength, cost-effective rail designed for medium-load applications in industrial, mining, and temporary railway systems. Manufactured in strict accordance with the ASTM A1 standard, this rail combines durability with a lightweight design, making it an ideal choice for environments requiring reliable performance and ease of installation.
Hanzi offers a wide range of rails—including light rails (such as ASCE 30), heavy rails, and crane rails—available in various standards and specifications.
