Specifications
Model: ASCE 25
Standard: AREMA
Weight: 12.4 kg/m
Material: 700
Length: 6–12 m, 12.5–25 m, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |

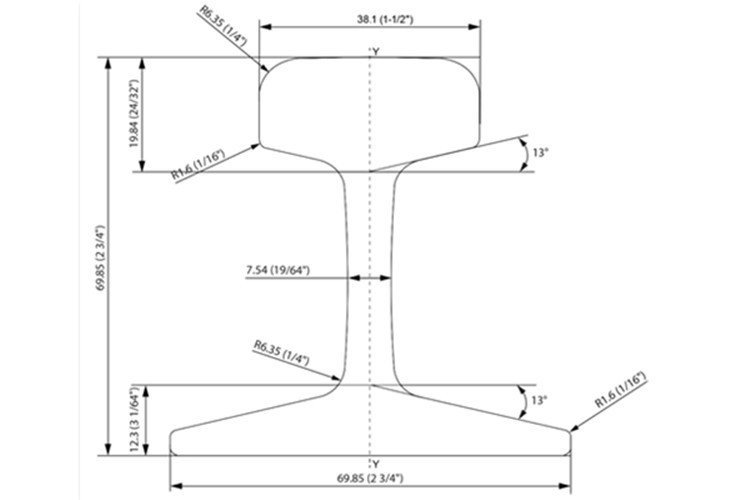

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The ASCE 25 (also known as 25 lb rail) is a high-quality, cost-effective light rail designed for light-to-medium load applications in industrial, mining, and temporary railway systems. Manufactured in strict accordance with ASTM A1 and AREMA standards, this rail combines durability with a lightweight design, making it an ideal choice for environments requiring easy installation and economical material handling.
Hanzi offers a wide range of rails—including light rails (such as ASCE 25), heavy rails, and crane rails—available in various standards and specifications.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
