Specifications
Model: ASCE 45
Standard: ASTM A1/AREMA
Weight: 45 lb/yd (22.32 kg/m)
Material: 700
Length: 6–12m, 12.5–25m, or customized lengths upon request
Model | Dimension | |||
Head Width(mm) | Height(mm) | Bottom Width(mm) | Web Thickness(mm) | |
45LBS Rail | 50 | 94 | 93 | 12 |

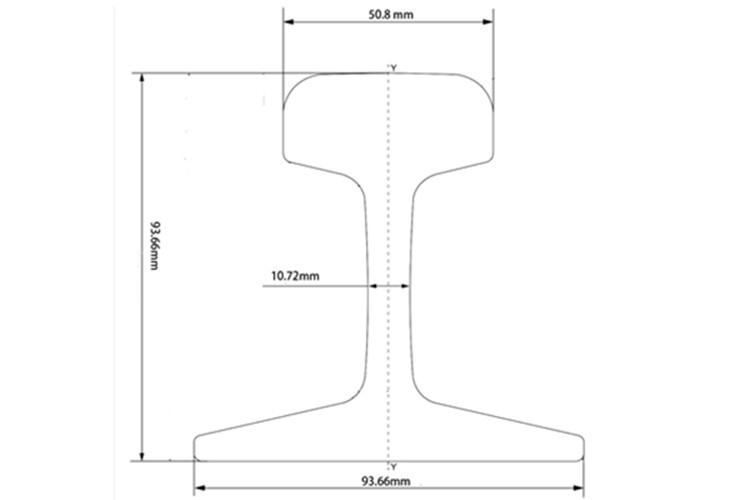

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The ASCE 45 rail is a lightweight American standard rail (ASTM A1) designed for low-to-medium load applications, primarily used in mining, industrial cranes, and automated warehouse systems. Weighing 45 lb/yd (22.32 kg/m), it offers a balance of durability and cost-effectiveness, making it an ideal choice for non-mainline railway applications that require flexibility and ease of installation.
Hanzi supplies a wide range of rails—including light rails, heavy rails (such as the ASCE 45), and crane rails—available in various standards and specifications.
