Specifications
Model: 45E3
Standard: BS11:1985
Weight: 44.79 kg/m (89.9 lb/yd)
Material: R260/R350HT
Length: 6–12m, 12.5–25m, or custom lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
A | B | C | t | ||
45E3(RN45) | 142 | 130 | 66 | 15 | 44.79 |

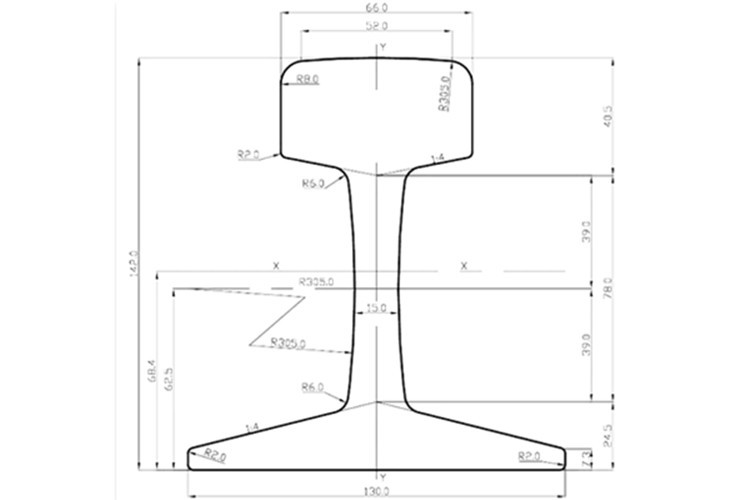

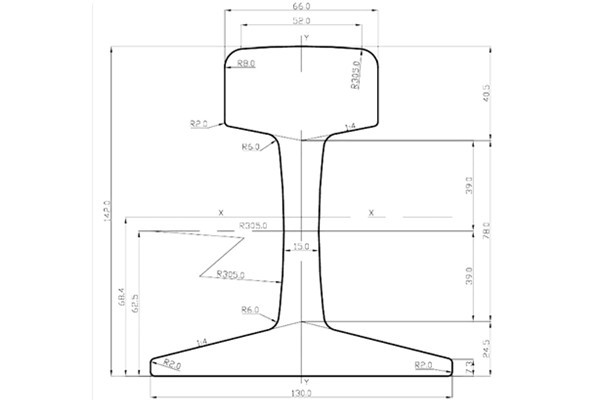

Drawing
Contact Us
Hanzi is China's largest steel rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 45E3 steel rail (also known as the RN45 rail) is designed for superior performance in heavy-duty industrial environments, combining exceptional strength and wear resistance with precision manufacturing. Compliant with the EN 13674-4 standard and manufactured from high-quality steel grades (R200, R260, R260Mn, R350HT), this rail offers excellent wear and fatigue resistance.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 45E3), and crane rails—available in various standards and specifications.
