Specifications
Model: ASCE 60
Standard: ASTM A1/AREMA
Weight: 29.76 kg/m
Material: 700
Length: 6–12 m, 12.5–25 m, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |

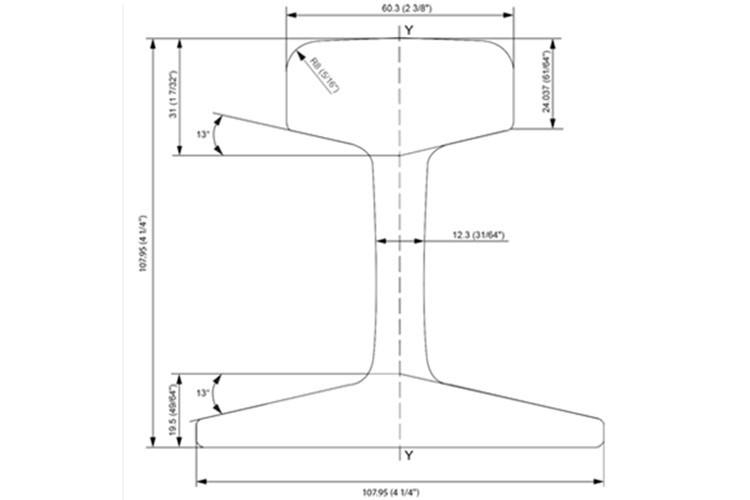

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The ASCE 60 rail (also known as the 60 lb rail) is a high-strength, corrosion-resistant rail designed for heavy-duty applications in mining, port logistics, and temporary railway systems. Manufactured in strict accordance with ASTM A1 and AREMA standards, this rail offers a balance of durability and cost-effectiveness, making it an ideal choice for applications requiring reliable performance.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the ASCE 60), and crane rails—available in various standards and specifications.
