Specifications
Model: BS80R
Standard: BS11:1985
Weight: 39.374 kg/m
Material: 900A
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
BS80R | 63.5 | 133.35 | 127 | 13.49 | 39.374 | 900A | 8-25 |

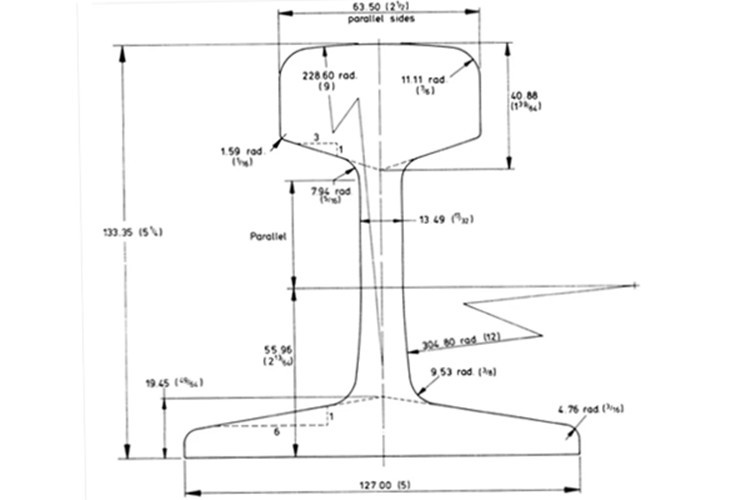

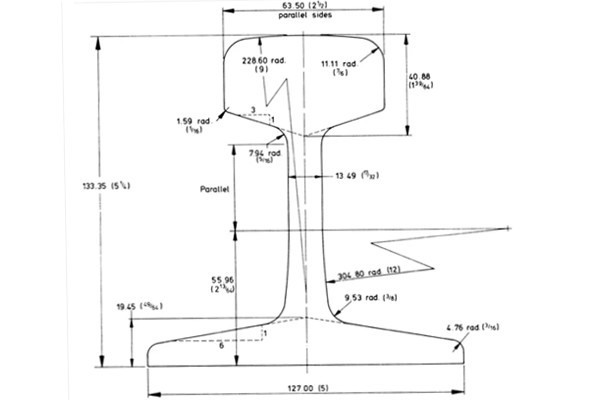

Drawing
Contact Us
Hanzi is China's largest steel rail manufacturer. If you are interested in our steel rails or have any questions, please contact us for further information and a quote.
The BS80R steel rail complies with British standards and weighs 39.37 kg per meter. BS80R rails are primarily used for transport in mine roadways and factory workshops, for crane hoisting equipment, and for the construction of specialized railway lines.
Hanzi offers a wide range of steel rails—including light rails, heavy rails (such as the BS80R), and crane rails—available in various standards and specifications.
