Specifications
Model: BS50 O Rail
Standard: BS11:1985
Weight: 24.833 kg/m
Material: 700
Length: 6–12 m, 12.5–25 m, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
BS50 O | 52.39 | 100.01 | 100.01 | 10.32 | 24.833 | 700 | 6-18 |

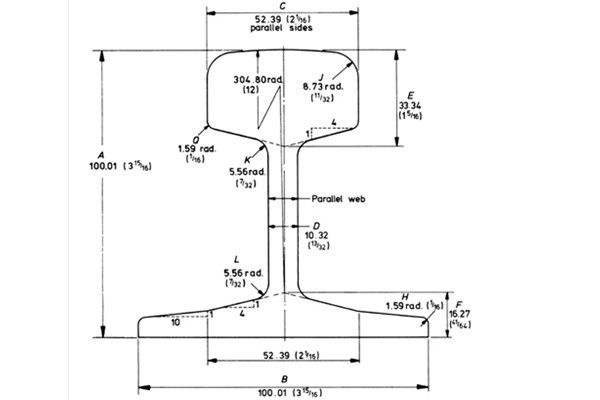

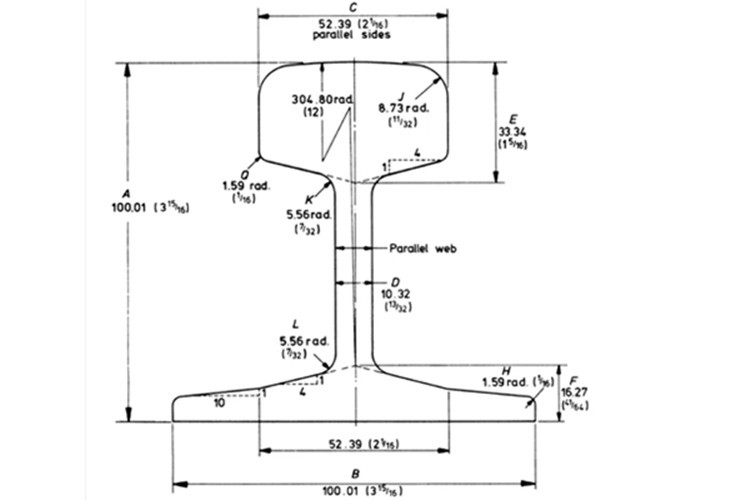

Drawing
Contact Us
Hanzi is China's largest steel rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The BS50 O steel rail is manufactured in accordance with the British Standard (BS11:1985) and has a weight of 24.833 kg/m. BS50 O rails are primarily used for transport in mine roadways and factory workshops, for crane hoisting equipment, and for the construction of specialized railway lines.
Hanzi offers a wide range of steel rails—including light rails (such as the BS50 O), heavy rails, and crane rails—available in various standards and specifications.
