Specifications
Model: BS60R
Standard: BS11:1985
Weight: 29.822 kg/m
Material: 700
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
BS60R | 114.30 | 109.54 | 57.15 | 11.11 | 29.822 |

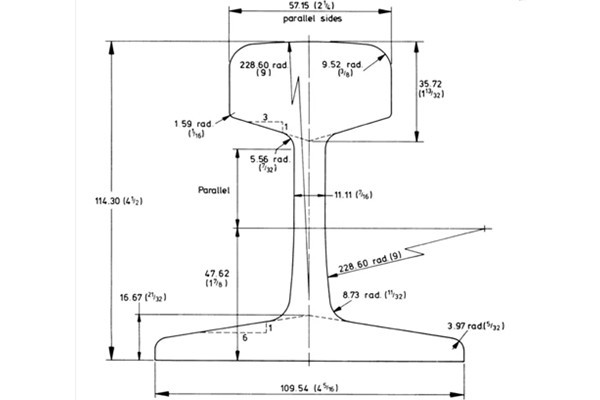

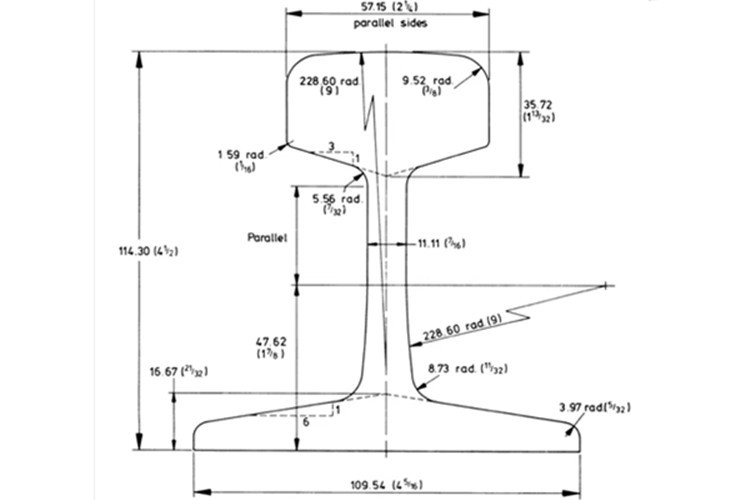

Drawing
Contact Us
Hanzi is a leading steel rail manufacturer in China. If you are interested in our steel rails or have any questions, please contact us for more information and a quote.
The BS60R steel rail complies with the British Standard BS 60R, offering high strength, high quality, and durability for railway applications. It weighs 60 pounds per yard (29.822 kg per meter), with the "R" in its name indicating that it is a rolled steel section.
BS60R rails are primarily used for transport in mine roadways and factory workshops, for crane lifting equipment, and for the construction of specialized railway tracks.
Hanzi offers a wide range of steel rails—including light rails (such as the BS60R), heavy rails, and crane rails—available in various standards and specifications.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
