Specifications
Model: JIS 12kg
Standard: JIS E 1103-91
Weight: 12.2 kg/m
Material: Q235B (low-carbon steel) or 55Q (medium-carbon steel)
Length: 6–12m, 12.5–25m, or custom lengths upon request
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
12kg | 69.85 | 69.85 | 38.10 | 7.54 | 12.20 |

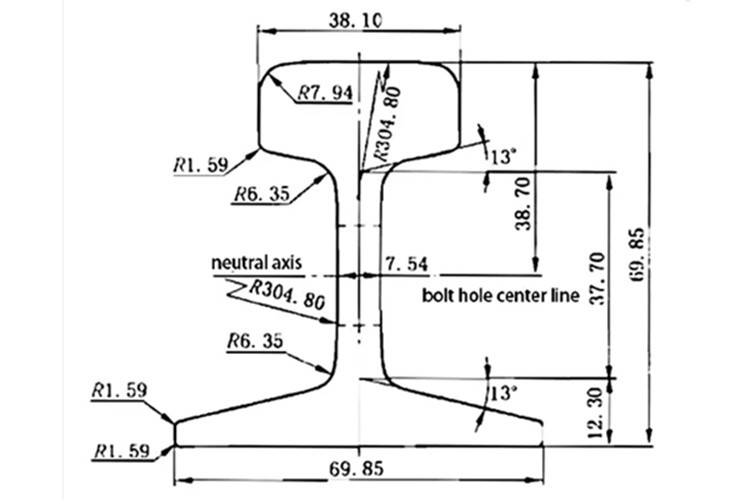

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The JIS 12kg light rail is designed to meet the rigorous requirements of JIS E 1103-91 (Japanese Industrial Standards), ensuring optimal performance in low-to-medium load applications. It is an ideal choice for temporary or permanent track installations, particularly where durability and cost-effectiveness are priorities.
Hanzi offers a wide range of rail products—including light rails (such as the JIS 12kg rail), heavy rails, and crane rails—available in various standards and specifications.
