Straight Web Sheet Piles

Straight Web Sheet Piles

Description

Hot-rolled straight web sheet piles offer high interlocking strength, making them ideal for circular structures and cofferdams. Straight web sheet piles can be preassembled into a large unit, then submerged and driven sequentially.



Hanzi offers straight web sheet piles in a variety of sizes to meet our customers' specific needs and preferences. Our straight web sheet piles can be sourced directly from our inventory or from our production facilities.



Every project has unique requirements. Our engineers will diligently find the most suitable straight web sheet pile for you, taking all relevant factors into consideration to ensure optimal performance and efficiency.


Specifications

Specifications

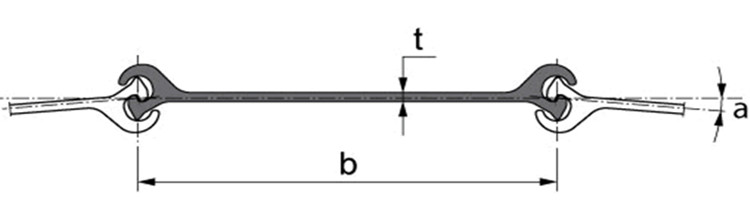

AS500 Series of Straight Web Pile Sheets

Section

Width*

Thickness

Interlock Strength

Interlock Rotation**

Sectional Area

Mass

Section Modulus

Moment of Inertia


b mm

t mm

kN/m

δ °

cm2/m

Pile
kg/m

Wall
kg/m2

cm3/m

cm4

AS 500 9.5

500

9.5

3000

4.5

162.6

63.8

128

46

168

AS 500 11.0

500

11

3500

4.5

180.0

70.6

141

49

186

AS 500 12.2

500

12

5000

4.5

189.2

74.3

149

51

196

AS 500 12.5

500

12.5

5500

4.5

194.5

76.3

153

51

201

AS 500 12.7

500

12.7

5500

4.5

196.4

77.1

154

52

204
