Description

Trench sheets, also known as trench sheet piles, provide an efficient support system for shallow excavation projects. Hanzi trench sheets can be used to support earthen embankments, ensuring the safety of construction workers. They are also ideal for reinforcing waterway embankments and service ditches.



Hanzi offers trench sheets in a variety of sizes to meet our customers' specific needs and preferences. Our trench sheets can be sourced directly from our inventory or from our production facilities.



Every project has unique requirements. Our engineers will diligently find the most suitable trench sheet for you, taking all relevant factors into consideration to ensure optimal performance and efficiency.


Specifications

Specifications

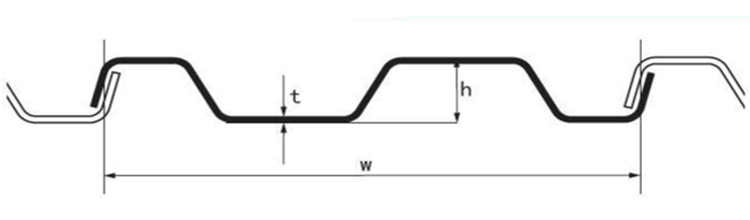

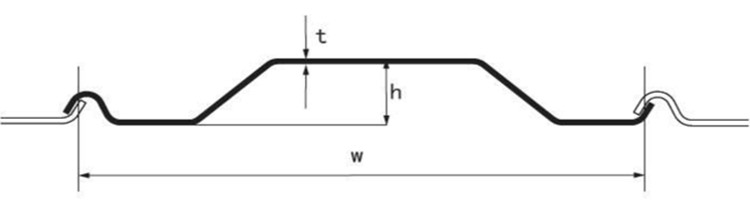

Section

Dimensions

Mass

Per meter of wall

Width

Height

Thickness

Single
pile

Wall

Modulus of
Section

Moment of
Inertia

w

h

t

W

I

mm

mm

mm

Kg/m

kg/m2

cm3

cm4

GPT600-6

600

78

6

37.5

62

184

722

GPT600-7

600

79

7

44.5

74.1

232

835

GPT600-8

600

80

8

50

83

237

955

GPT600-9

600

81

9

55.53

92.55

263

1072


Section

Dimensions

Mass

Moment of inertia

Modulus of Section

Width

Height

Thickness

Per pile

Wall

w

h

t

mm

mm

mm

kg/m

kg/m2

cm4/m

cm3/m

GPT 330-3

330

34

3

9.72

29.45

68

40

GPT 330-3.5

330

34.5

3.5

11.34

34.36

79

46

GPT 330-4

330

35

4

12.96

39.29

91

52

GPT 330-4.5

330

35.5

4.5

14.53

44.04

103

57

GPT 330-5

330

36

5

16.09

48.76

114

63

GPT 400-4

400

37

4

15.62

39.05

100

49

GPT 400-5

400

49

5

18.52

46.3

208

84

GPT 400-5.5

400

49.5

5.5

20.37

50.92

229

91

GPT 400-6

400

50

6

22.23

55.57

250

99

GPT 500-5

500

49

5

22.45

44.9

215

86

GPT 500-6

500

50

6

26.94

53.88

258

101

GPT 742-5

742

91

5

33.79

45.54

745

163

GPT 742-6

742

92

6

40.9

54.66

893

194

GPT 742-6.5

742

92.5

6.5

43.72

58.9

967

209

GPT 742-7

742

93

7

47.03

63.4

1042

224

GPT 742-7.5

742

93.5

7.5

50.3

67.8

1116

239

GPT 742-8

742

94

8

53.56

72.18

1197

254

GPT 742-9

742

95

9

60.26

81.21

1346

283

GPT 880-4

880

152

4

41.2

46.8

1897

261

GPT 880-6

880

154

6

61.9

70.3

2858

382

GPT 880-8

880

156

8

84.6

96.1

3890

510


Note: This table is only part of our sizes. We have over 1000 different sizes. We can adjust our machine to produce in any width,Height and thickness. Please contact us if your size is not in above table.



* Section Modulus Range

45-295 cc/m



* Width Range (Single)

330-800 mm



* Thickness Range

3.5-8.0 mm



* Manufacturing Standards

BS EN 10249 JIS



* Steel Grades

Q235B, Q345B, Q345C, Q390B, Q420B

S235, S275JR, S355JR, S355JO

ASTM A572 Gr42, Gr50, Gr60

Others available upon request



* Length

Maximum 12.0 m

Any project-specific length can be produced



For More Assistance

Please contact us for more information and a quote.
