Specifications
Model: 12kg Rail (National Standard)
Standard: GB (National Standard)
Material: U71Mn, U75V
Length: 6–12m, 12.5–25m, or customized lengths upon request
12kg Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
12kg | 12.2 | Q235/55Q | 6-12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
38.1 | 69.85 | 69.85 | 7.54 |

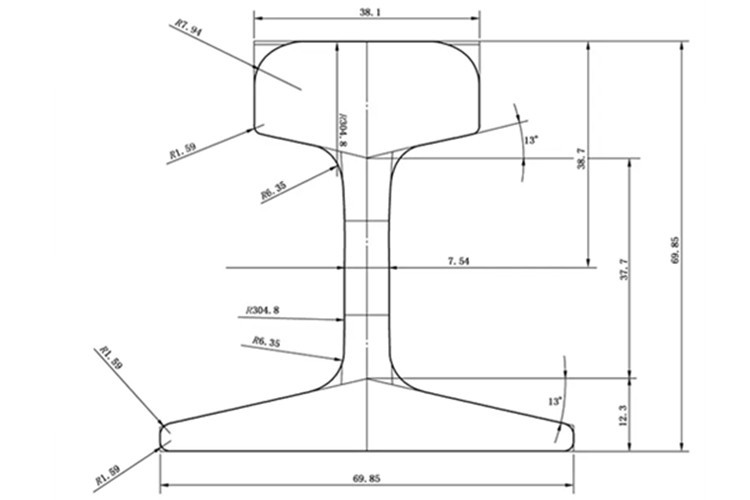

Drawings
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
