Specifications
Model: 50E5
Standard: BS11:1985
Weight: 49.9 kg/m
Material: R260/R350HT
Length: 6–12 meters, 12.5–25 meters, or custom lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
50E5 rail | 67 | 148 | 135 | 14 | 49.9 | R260/R350HT | 12-25 |

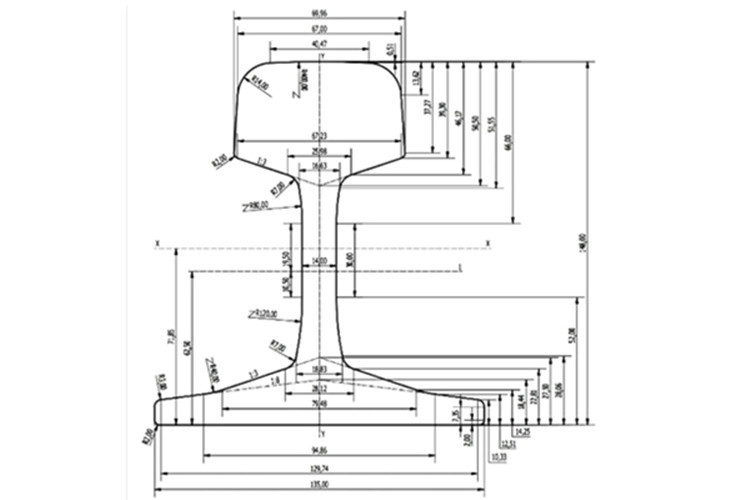

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 50E5 rail is a heavy-duty rail profile designed to meet the rigorous demands of European mainline railways, heavy-haul freight systems, and industrial applications. Compliant with the EN 13674-4 standard, this rail offers a combination of strength, durability, and dimensional precision. With a weight of 49.90 kg/m and carefully engineered dimensions, the 50E5 rail is an ideal choice for high-traffic corridors, mining operations, and crane systems—particularly in applications requiring exceptional reliability under dynamic loads.
Hanzi offers a wide range of rails, including light rails, heavy rails (such as the 50E5), and crane rails, available in various standards and specifications.
