Specifications
Model: National Standard 8kg Rail
Standard: GB Standard
Material: Q235, 55Q
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
8kg Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
8kg | 8.42 | Q235 | 6-12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
25 | 54 | 65 | 7 |

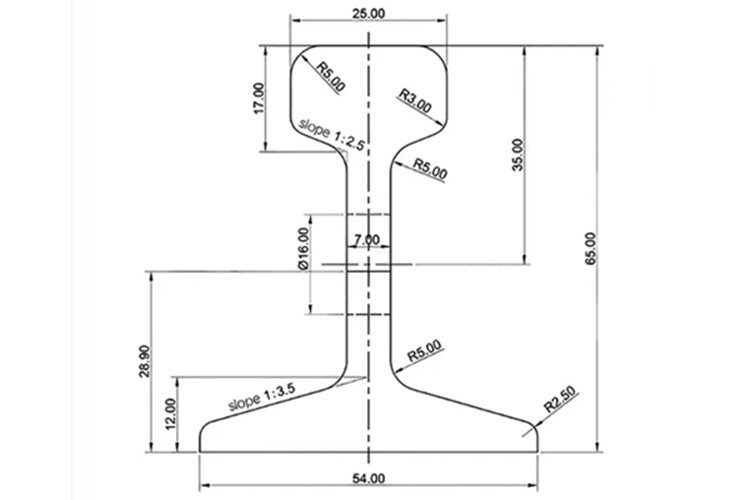

Drawings
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The 8kg national standard light rail refers to light rail steel that complies with national standards and has a weight of 8.42 kg/m. It is primarily used for light-duty railways, mining tunnels, industrial production line tracks, temporary tracks, and similar applications.
Hanzi offers a wide range of rail products—including light rails (such as the 8kg rail), heavy rails, and crane rails—available in various standards and specifications.
