Specifications
Model: National Standard 30kg Rail
Standard: GB Standard
Material: U71Mn, U75V
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
30kg Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
30kg | 30.1 | Q235/55Q | 6-12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
60.33 | 107.95 | 107.95 | 12.3 |

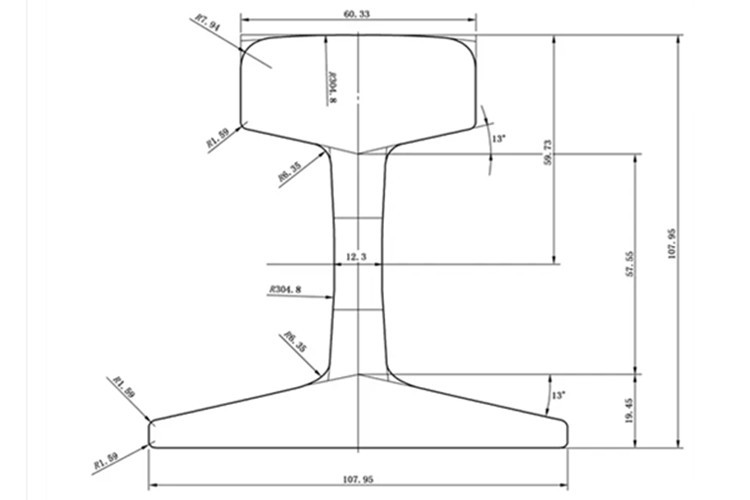

Drawings
