Specifications
Model: GB 50kg Rail
Standard: GB Standard
Weight: 51.514 kg/m
Material: 50Mn/U71Mn
Length: 6–12m, 12.5–25m, or customized lengths upon request
50kg Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
50kg | 51.514 | 50Mn/U7Mn | 12.5-25 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
70 | 132 | 152 | 15.5 |

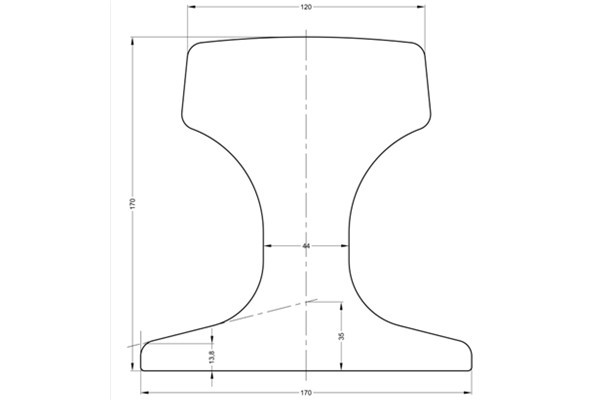

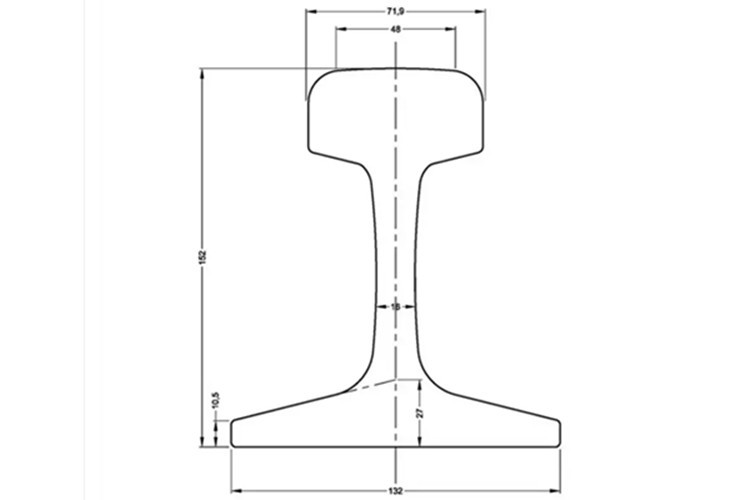

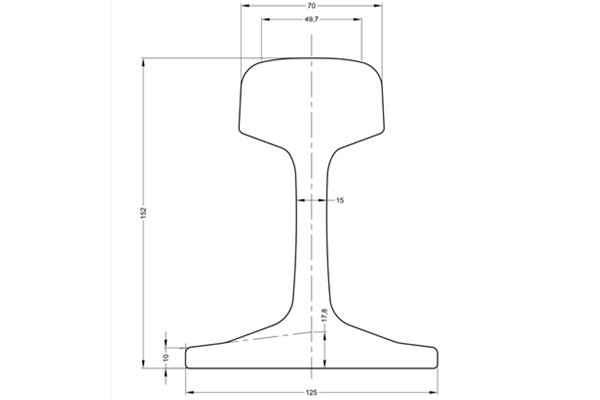

Drawings
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
