Specifications
Model: 50E6
Standard: BS11:1985
Weight: 50.9 kg/m
Material: R260/R350HT
Length: 6–12m, 12.5–25m, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
50E6 rail | 65 | 153 | 140 | 15.5 | 50.9 | R260/R350HT | 12-25 |

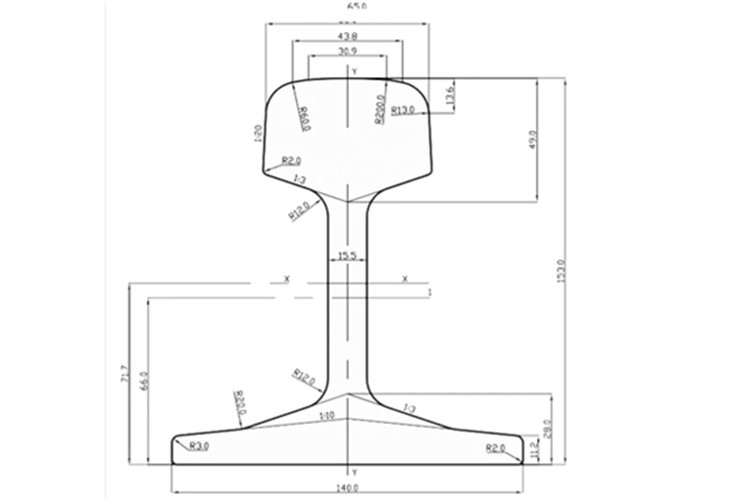

Drawings
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The 50E6 rail (also known as U50) is a high-quality heavy rail profile designed to meet the most demanding requirements of ultra-heavy freight transport, urban rail transit systems, and heavy-duty industrial applications. Compliant with EN 13674-1 (mechanical properties) and EN 13674-4 (dimensions) standards, this rail offers a unique balance of strength, durability, and dimensional precision.
Hanzi offers a wide range of rail products—including light rails, heavy rails (such as the 50E6), and crane rails—available in various standards and specifications.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
