Specifications
Model: GB 43kg Rail
Standard: GB Standard
Weight: 44.635 kg/m
Material: 50Mn/U71Mn
Length: 6–12m, 12.5–25m, or customized lengths upon request
43kg Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
43kg | 44.653 | 50Mn/U7Mn | 12.5-25 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
70 | 114 | 140 | 14.5 |

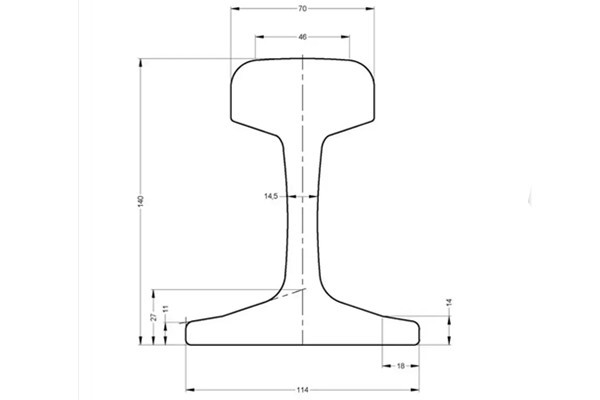

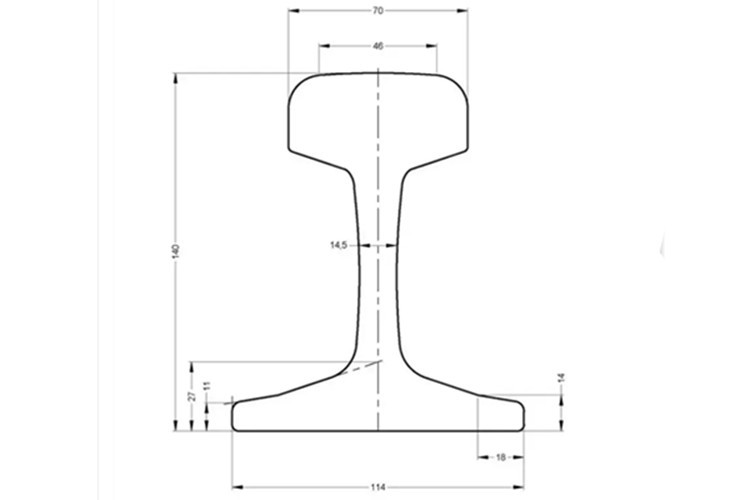

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
