Specifications
Model: QU100 rail
Standard: YB/T 5055-2014
Weight: 88.96 kg/m
Material: U71Mn
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
QU100 Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
QU100 | 88.96 | U71Mn | 12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
100 | 150 | 150 | 38 |

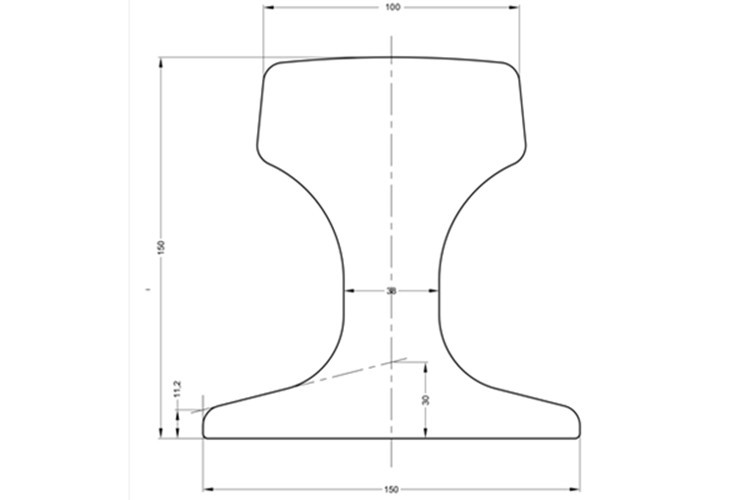

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The QU100 is a heavy-duty crane rail that complies with the YB/T 5055-2014 standard and weighs 88.96 kg/m. It is designed for reliable load transfer and long-term performance in industrial crane systems.
Hanzi offers a wide range of rails—including light rails, heavy rails, and crane rails (such as the QU100)—available in various standards and specifications.
