Specifications
Model: QU80 rail
Standard: YB/T 5055-2014
Weight: 63.69KG/M
Material: U71Mn
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
QU80 Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
QU80 | 63.69 | U71Mn | 12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
80 | 130 | 130 | 32 |

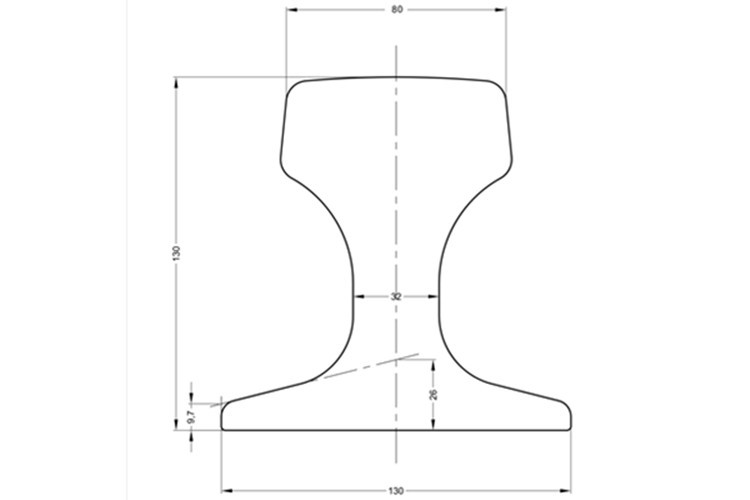

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The QU80 is a heavy-duty crane rail that complies with the YB/T 5055-2014 standard and has a weight of 63.69 kg/m. It is designed for reliable load transfer and long-term performance in industrial crane systems.
Hanzi offers a wide range of rails—including light rails, heavy rails, and crane rails (such as the QU80)—available in various standards and specifications.
