Specifications
Model: JIS 50N
Standard: JIS E 1101
Weight: 50.4 kg/m
Material: U71Mn
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
JIS 50N | 65 | 153 | 127 | 15 | 50.4 | U71Mn | 10-25 |

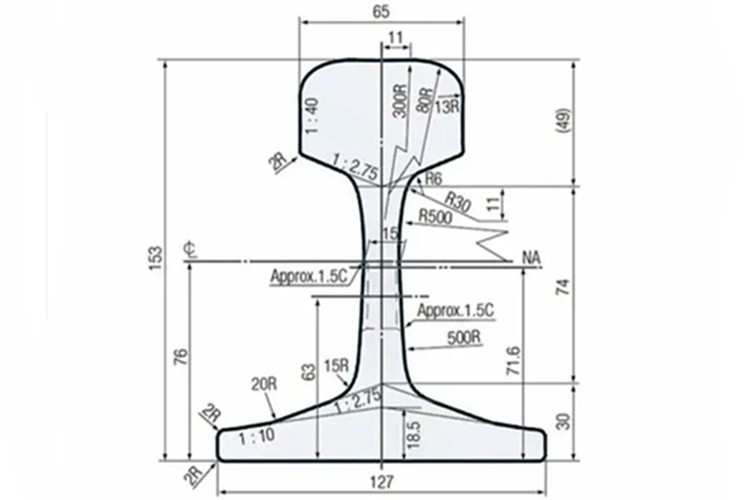

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The JIS 50N rail (also known as the JIS 50kgN rail) is a high-strength, heavy-duty rail designed for demanding applications such as heavy-haul railways, mining operations, and port logistics. Compliant with the JIS E 1101 standard, this rail has a nominal weight of 50.4 kg/m and is engineered to withstand high axle loads and dynamic stresses.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the JIS 50N), and crane rails—available in various standards and specifications.
