Specifications
Model: A45 Rail
Standard: DIN 536-1-1991
Weight: 22.1 kg/m
Material: 700 / 900A / 1100
Length: 6–12m, 12.5–25m, or customized lengths upon request
A45 Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
A45 | 22.1 | 700/900A/1100 | 10-12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
45 | 125 | 55 | 24 |

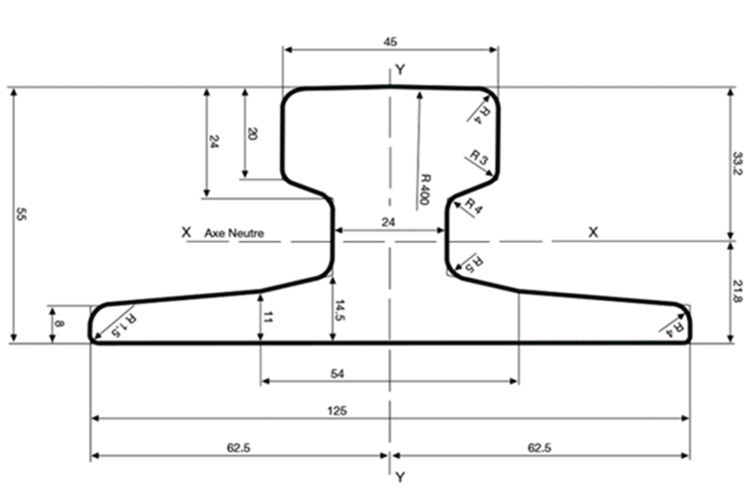

Drawing
