Specifications
Model: S10 rail
Standard: DIN 5901
Weight: 10 kg/m
Material: Q235B (low-carbon steel) or 55Q (medium-carbon steel)
Length: 6–12 meters, 12.5–25 meters, or customized lengths
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
S10 | 70 | 58 | 32 | 6 | 10 |

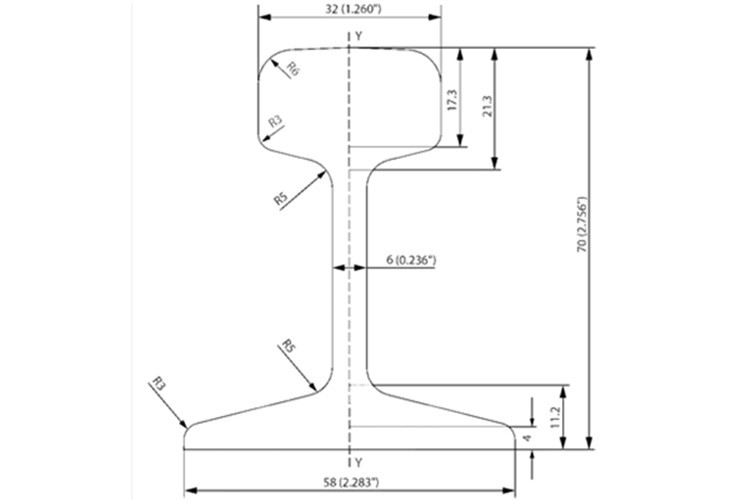

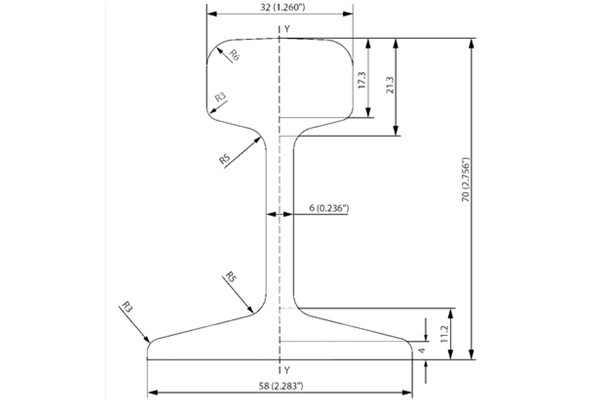

Drawing
Contact Us
Hanzi is China's largest steel rail manufacturer. If you are interested in our steel rails or have any questions, please contact us for more information and a quote.
The S10 light rail system is designed for light industrial applications, crane tracks, and modular rail networks, offering a combination of precision and durability. Our S10 rails and accessories are designed in strict accordance with DIN 5901 and EN 13674-1 standards, ensuring reliable performance in factory, port, and mining environments.
Hanzi offers a wide range of steel rails—including light rails, heavy rails, and crane rails (such as the S10)—available in various standards and specifications.
