Specifications
Model: JIS 37kg
Standard: JIS E 1103-93
Weight: 37.2 kg/m
Material: U71Mn
Length: 6–12m, 12.5–25m, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
JIS 37A | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | U71Mn | 10-25 |

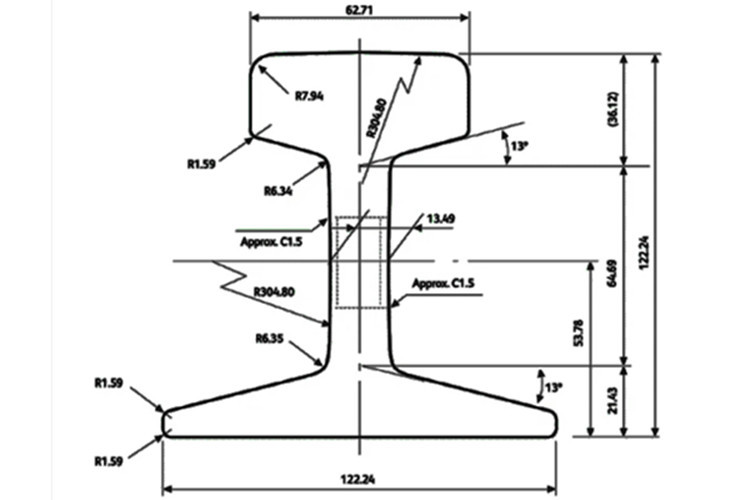

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The JIS 37kg heavy rail (also known as JIS 37A) is designed to meet the rigorous requirements of JIS E 1101-93 (Japanese Industrial Standards), offering exceptional durability for heavy-duty applications. Manufactured from U71Mn high-strength steel, it combines high tensile strength (≥880 MPa), yield strength (≥685 MPa), and hardness (HBW ≥260), making it suitable for long-term use in demanding industrial and railway environments.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as JIS 30A), and crane rails—available in various standards and specifications.
