Specifications
Model: JIS 50kg
Standard: JIS E 1101
Weight: 50.4 kg/m
Material: U71Mn
Length: 6–12m, 12.5–25m, or customized lengths upon request
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
50kg (50PS) | 144.46 | 127.00 | 67.87 | 14.29 | 50.4 |

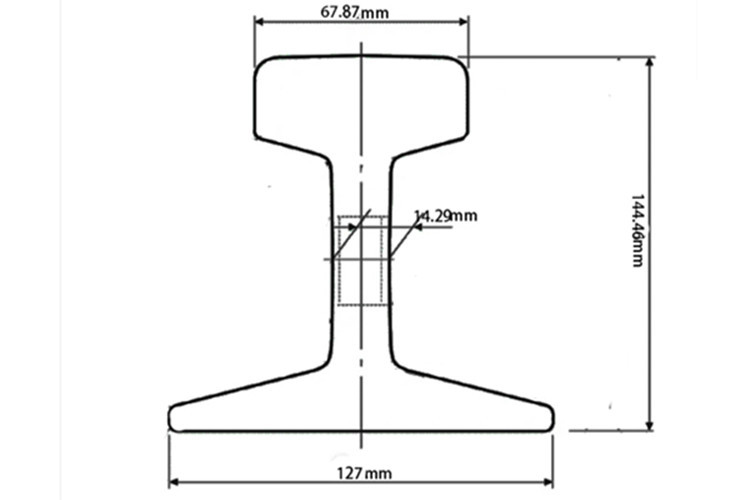

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The JIS 50kg rail (also known as the JIS 50PS rail) is a precision-engineered rail designed for medium-to-heavy industrial applications, featuring a nominal weight of 50.4 kg/m. It complies with the JIS E 1103-91 standard (updated to JIS E 1101:2015). Compared to the heavy-duty JIS 50N rail, this rail features a wider head (67.87 mm) and a thinner web (14.29 mm), making it an ideal choice for cost-effective and reliable performance in factory logistics, crane systems, and temporary railway lines.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the JIS 50kg rail), and crane rails—available in various standards and specifications.
