Specifications
Model: 39E1
Standard: BS11:1985
Weight: 39.77 kg/m (79.9 lb/yd)
Material: R260/R350HT
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
A | B | C | t | ||
39E1(BS80A) | 133.4 | 117.5 | 63.5 | 13.1 | 39.77 |

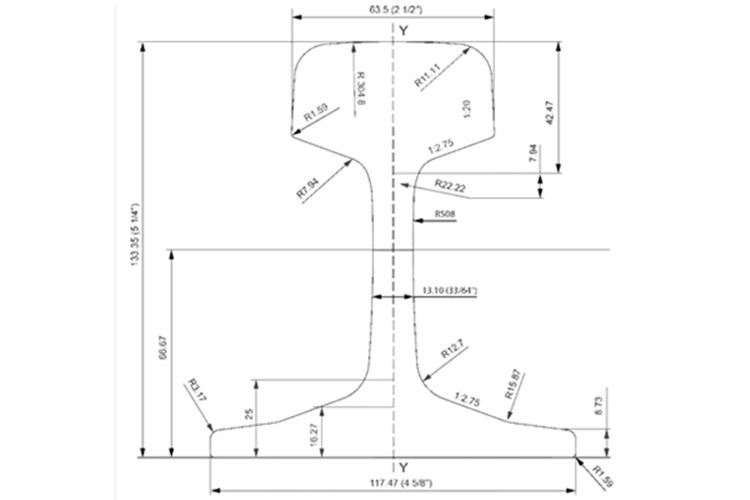

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 39E1 steel rail (also known as the BS80 A rail) is a high-quality rail designed for medium-duty industrial applications, offering a balance of strength, durability, and cost-effectiveness. Manufactured in accordance with the EN 13674-4 standard, it is widely used in crane systems, railway tracks, and mining operations.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 39E1), and crane rails—available in various standards and specifications.
