Specifications
Model: BS75R
Standard: BS11:1985
Weight: 37.041 kg/m
Material: 900A
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
BS75R rail | 61.91 | 128.59 | 122.24 | 13.1 | 37.041 | 900A | 8-25 |

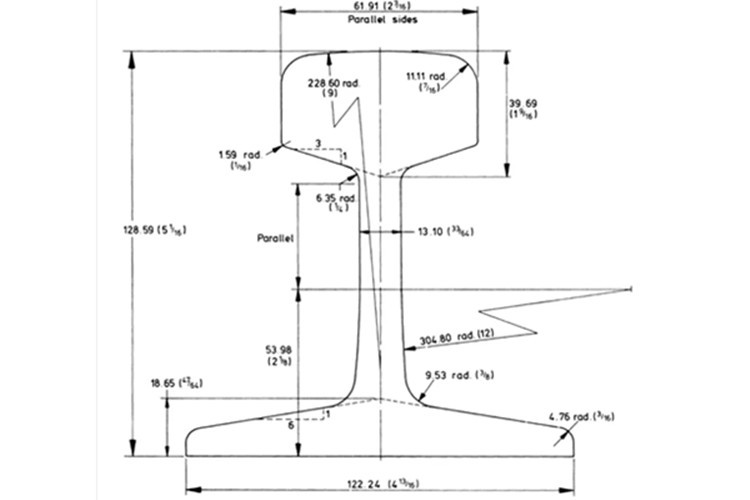

Drawing
Contact Us
Hanzi is a leading steel rail manufacturer in China. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The BS75R steel rail is a specific type of railway rail that complies with the British Standard BS 75; its design, strength, and quality meet the requirements of this standard. The BS75R rail weighs 75 pounds per yard (approximately 37.5 kg per meter), with the "R" indicating that it is a rolled profile.
BS75R rails are primarily used for transport in mine roadways and factory workshops, for crane runway systems, and for the construction of specialized railway tracks.
Hanzi offers a wide range of rails—including light rails (such as the BS75R), heavy rails, and crane rails—available in various standards and specifications.
