Specifications
Model: BS90A
Standard: BS11:1985
Weight: 45.099 kg/m
Material: 900A
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
BS90A rail | 66.67 | 142.88 | 127 | 13.89 | 45.099 | 900A | 8-25 |

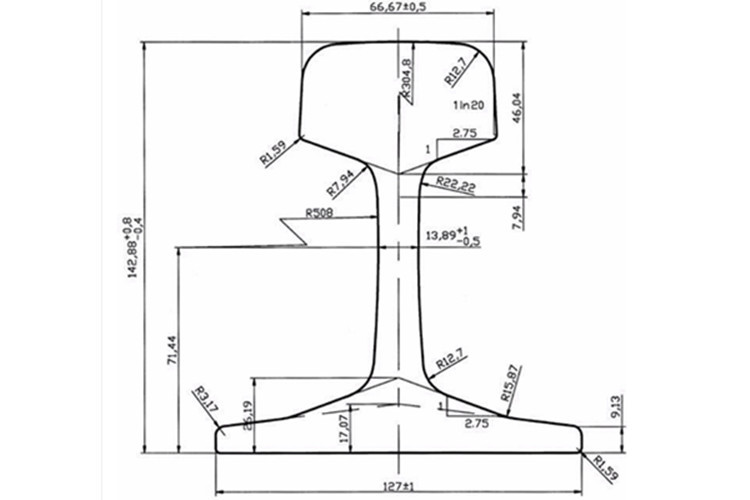

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a price quote.
The BS90A steel rail—also known as the 45E1 rail—is a high-strength rail designed specifically for heavy-duty railway transport and industrial applications. Manufactured in accordance with the EN13674 standard, it has a linear mass of 45.11 kg/m and is typically produced using R260 or R350HT steel grades. With its excellent load-bearing capacity and dimensional stability, the BS90A rail is an ideal choice for mainline railways, crane tracks, and port logistics systems that require long-term durability under high axle loads.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the BS90A), and crane rails—available in various standards and specifications.
