Specifications
Model: BS 100A
Standard: BS11:1985
Weight: 50.182 kg/m
Material: 900A
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
BS100A rail | 69.85 | 152.4 | 133.35 | 15.08 | 50.182 | 900A | 8-25 |

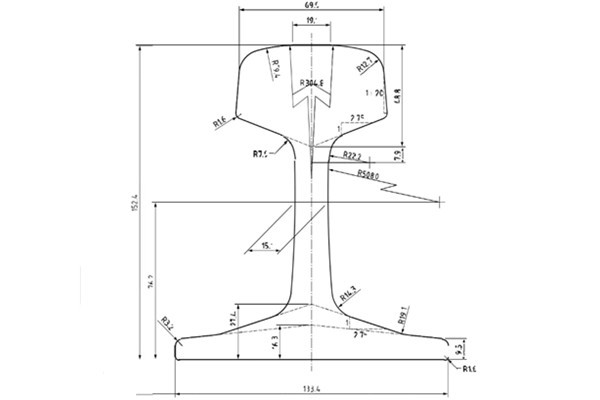

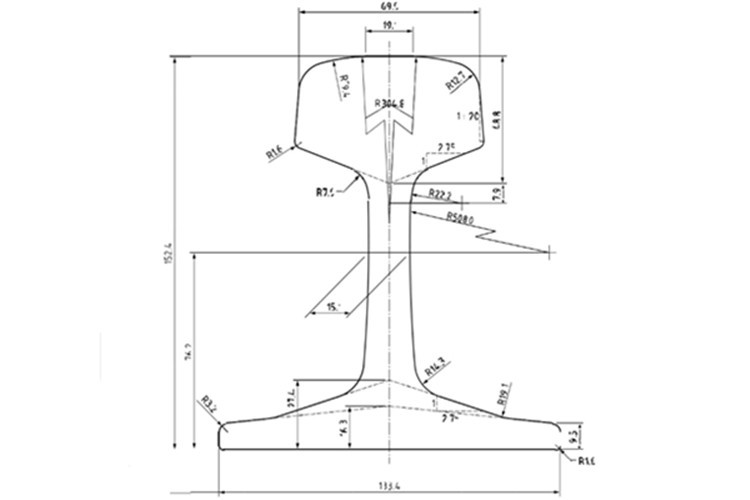

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The BS 100A steel rail is a high-quality rail manufactured in accordance with British Standard (BS) specifications, weighing 50.182 kg per meter. Designed for high performance, it is suitable for heavy-duty freight and passenger trains, providing a reliable and stable track.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the BS 100A), and crane rails—available in various standards and specifications.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
