Specifications
Model: 49E1
Standard: BS11:1985
Weight: 49.39 kg/m
Material: R260/R350HT
Length: 6–12 meters, 12.5–25 meters, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
49E1 rail | 67 | 149 | 125 | 14 | 49.39 | R260/R350HT | 12-25 |

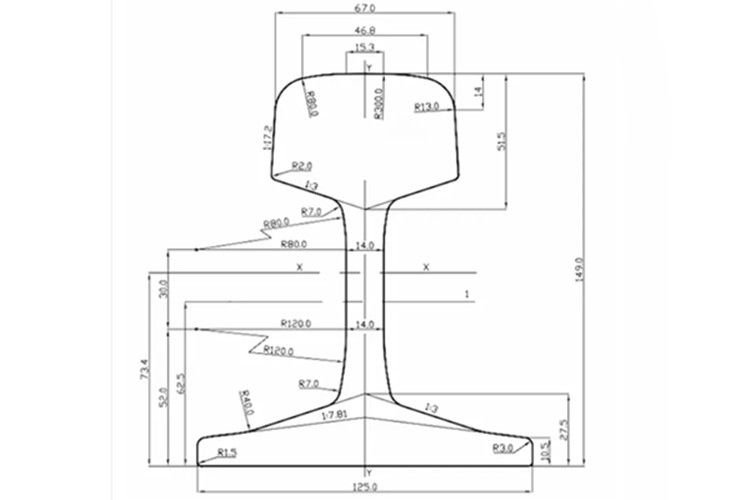

Drawing
Contact Us
Hanzi is a leading steel rail manufacturer in China. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The 49E1 steel rail (also known as the S49 rail) is a high-quality rail designed to meet the rigorous demands of European mainline railways, heavy-haul freight networks, and heavy-duty industrial systems. Manufactured from advanced steel grades (R260, R350HT) and compliant with the EN 13674-1 standard, this rail offers exceptional wear resistance, fatigue strength, and dynamic load-bearing capacity.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 49E1), and crane rails—available in various standards and specifications.
