Specifications
Model: 56E1
Standard: BS11:1985
Weight: 56.3 kg/m (124.12 lb/yd)
Material: R260/R350HT
Length: 6–12 meters, 12.5–25 meters, or custom lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
A | B | C | t | ||
56E1(BS113Lb) | 158.75 | 140 | 69.85 | 20 | 56.3 |

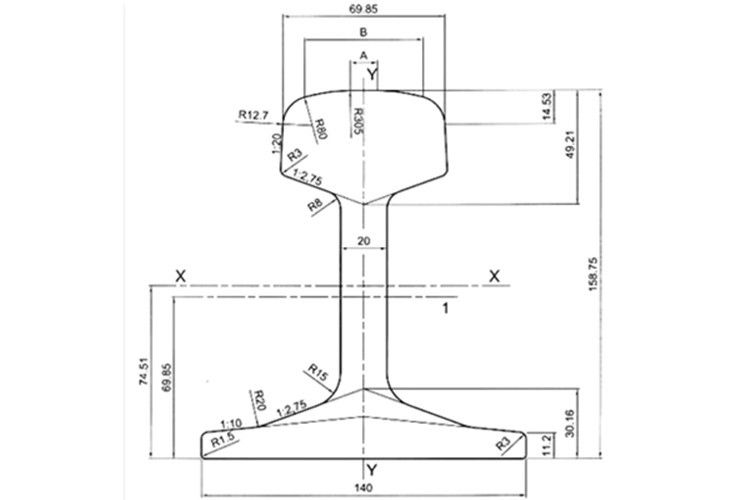

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 56E1 rail (also known as the BS113lb rail) is a heavy-duty railway rail profile defined under the European standard (EN 13674-1); it is widely used in demanding freight, industrial, and urban transit applications.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 56E1), and crane rails—available in various standards and specifications.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
