Specifications
Model: 46E2
Standard: BS11:1985
Weight: 46.27 kg/m (92.9 lb/yd)
Material: R260/R350HT
Length: 6–12m, 12.5–25m, or custom lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
A | B | C | t | ||
46E2(U33) | 145 | 134 | 62 | 15 | 46.27 |

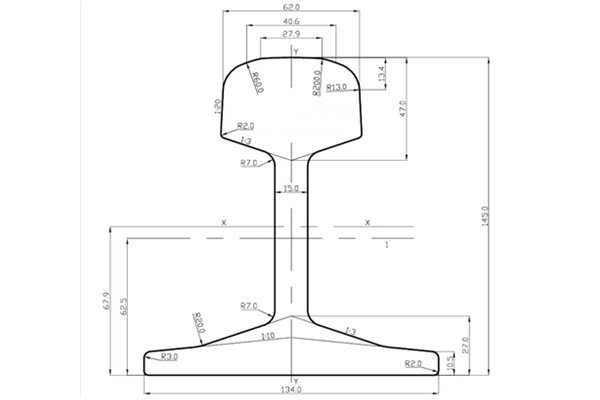

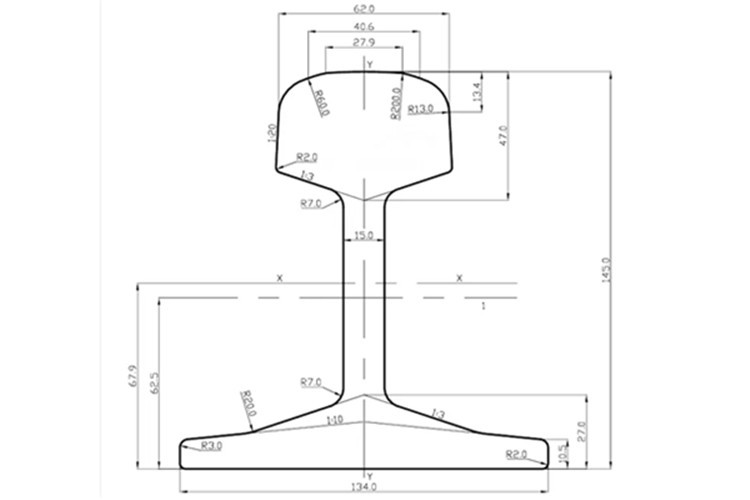

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 46E2 rail (also known as the U33 rail) is designed to deliver superior performance in heavy-duty industrial and railway environments. Compliant with the EN 13674-1 standard and manufactured from high-quality pearlitic steel (grades R200, R260, R260Mn, and R350HT), this rail offers excellent wear and fatigue resistance. Its robust design and global compatibility make it an ideal choice for heavy-duty crane systems, mining railways, and port logistics.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 46E2), and crane rails—available in various standards and specifications.
