Specifications
Model: 49E5
Standard: BS11:1985
Weight: 49.13 kg/m (108.31 lb/yd)
Material: R260/R350HT
Length: 6–12m, 12.5–25m, or customized lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
A | B | C | t | ||
49E5 | 149 | 125 | 67 | 14 | 49.13 |

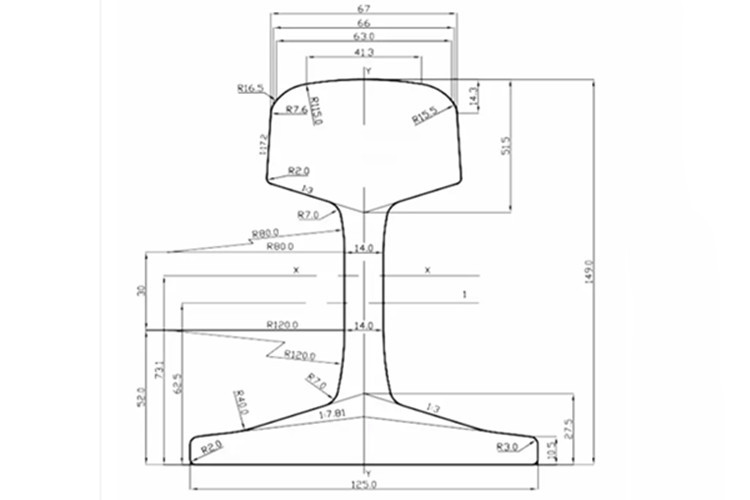

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 49E5 rail is a high-quality heavy-duty rail designed to meet the rigorous demands of European mainline railways, heavy-haul freight networks, and heavy-duty industrial systems. Compliant with the EN 13674-1 standard and manufactured from advanced pearlitic steel (R260, R350HT), this rail offers exceptional wear resistance, fatigue strength, and dynamic load-bearing capacity.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 49E5), and crane rails—available in various standards and specifications.
