Specifications
Model: 50E1
Standard: BS11:1985
Weight: 50.37 kg/m
Material: R260/R350HT
Length: 6–12m, 12.5–25m, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
50E1 | 65 | 153 | 134 | 15.5 | 50.37 | R260/R350HT | 12-25 |

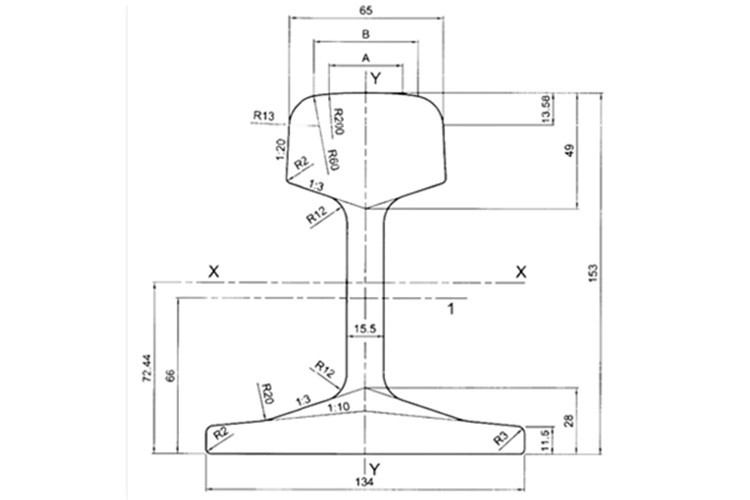

Drawing
Contact Us
Hanzi is a leading rail manufacturer in China. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The 50E1 rail is a high-quality heavy rail designed to meet the rigorous demands of European mainline railways, heavy-haul freight networks, and heavy-duty industrial systems. Compliant with the EN 13674-1 standard and manufactured from advanced pearlitic steel (R260, R350HT), this rail offers exceptional wear resistance, fatigue strength, and dynamic load-bearing capacity.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 50E1), and crane rails—available in various standards and specifications.
