Specifications
Model: 54E2
Standard: BS11:1985
Weight: 53.82 kg/m (118.65 lb/yd)
Material: R260/R350HT
Length: 6–12 meters, 12.5–25 meters, or custom lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
A | B | C | t | ||
54E2(UIC54E) | 161 | 125 | 67 | 16 | 53.82 |

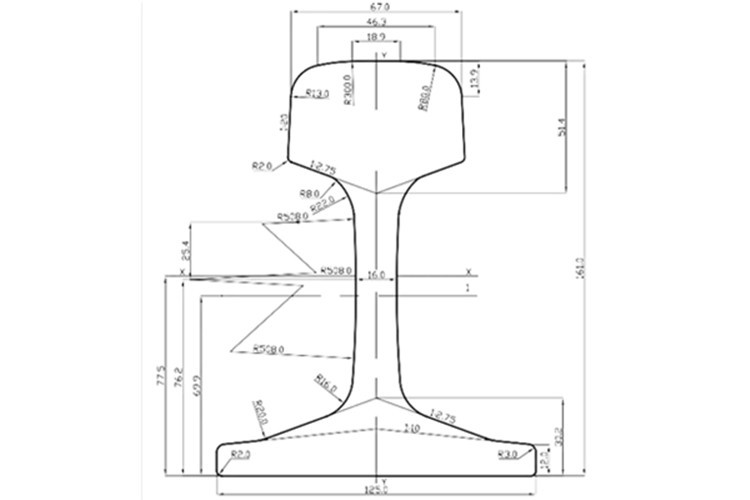

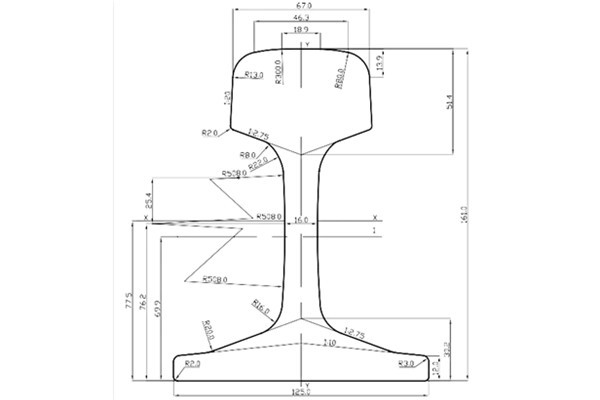

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The 54E2 (also known as UIC54E) rail is a high-quality heavy-duty rail designed to meet the rigorous demands of ultra-heavy-haul freight networks, urban rail transit systems, and industrial heavy-duty applications. Compliant with EN 13674-4 (dimensions) and EN 13674-1 (mechanical properties) standards, this rail offers an optimal balance of strength, durability, and dimensional precision.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the 54E2), and crane rails—available in various standards and specifications.
