Specifications
Model: 54E3
Standard: BS11:1985
Weight: 54.57 kg/m
Material: R260 / R350HT
Length: 6–12 m, 12.5–25 m, or custom lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
54E3 RAIL | 67 | 154 | 125 | 16 | 54.57 | R260/R350HT | 12-25 |

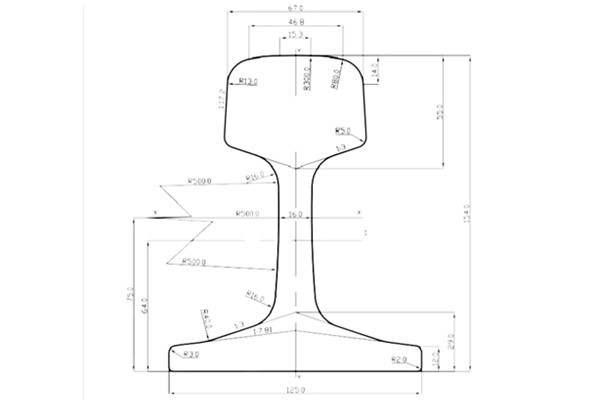

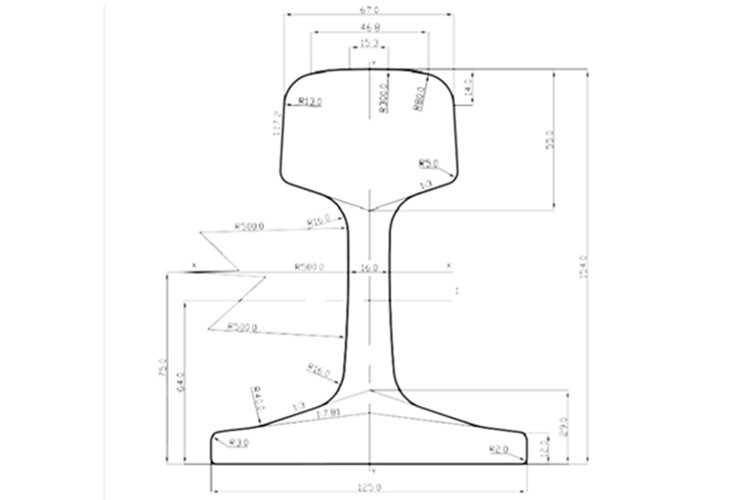

Drawing
Contact Us
Hanzi is a leading rail manufacturer in China. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The 54E3 rail (also known as DIN S54) is a high-performance, heavy-duty rail profile designed to meet the rigorous demands of ultra-heavy-haul freight, urban rail transit systems, and heavy-duty industrial applications. Compliant with EN 13674-4 (dimensions) and EN 13674-1 (mechanical properties) standards, this rail offers an optimal balance of strength, durability, and dimensional precision.
Hanzi offers a wide range of rail products—including light rails, heavy rails (such as the 54E3), and crane rails—available in various standards and specifications.
