Specifications
Model: KG Rail
Standard: ISCOR
Weight: 14.9 kg/m
Material: Grade 700
Length: 6–12 m, 12.5–25 m, or customized lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
15 KG | 41.28 | 76.2 | 76.2 | 7.54 | 14.905 | 700 | 9 |

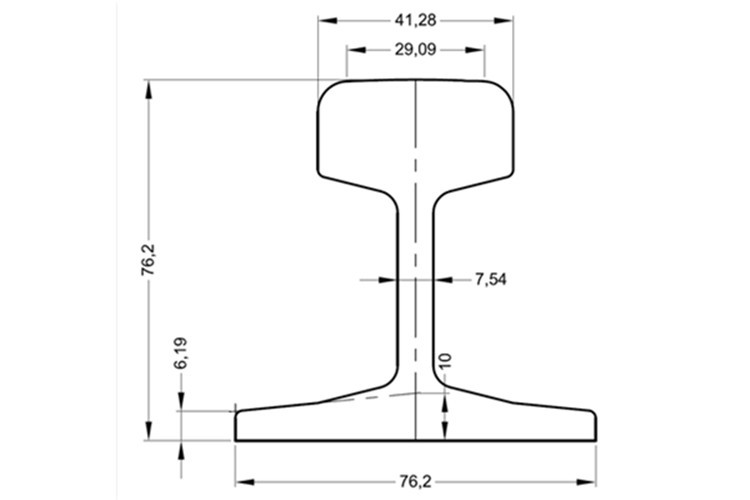

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The ISCOR 15 kg/m rail is a type of light rail designed specifically for mining transport lines, industrial spurs, and short-distance, low-speed branch lines. It is manufactured using Grade 700 steel and comes with the essential documentation required by buyers: Mill Test Certificates (MTC), basic mechanical property records, and optional photos of supervised loading.
Hanzi offers a wide range of rails—including light rails (such as the ISCOR 15 kg rail), heavy rails, and crane rails—available in various standards and specifications.
