Specifications
Model: 60E2
Standard: BS11:1985
Weight: 60.03 kg/m (132.34 lb/yd)
Material: R260/R350HT
Length: 6–12 m, 12.5–25 m, or custom lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
A | B | C | t | ||
60E2 | 172 | 150 | 72 | 16.5 | 60.03 |

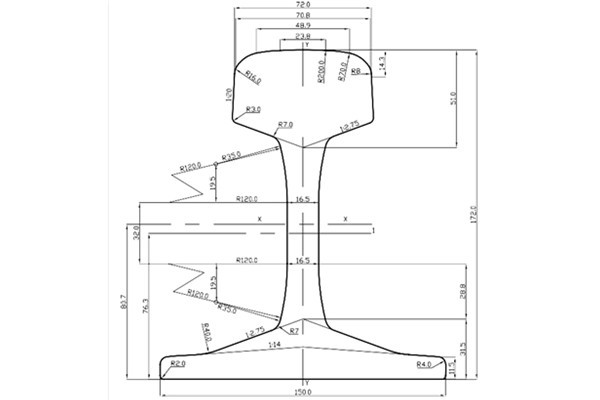

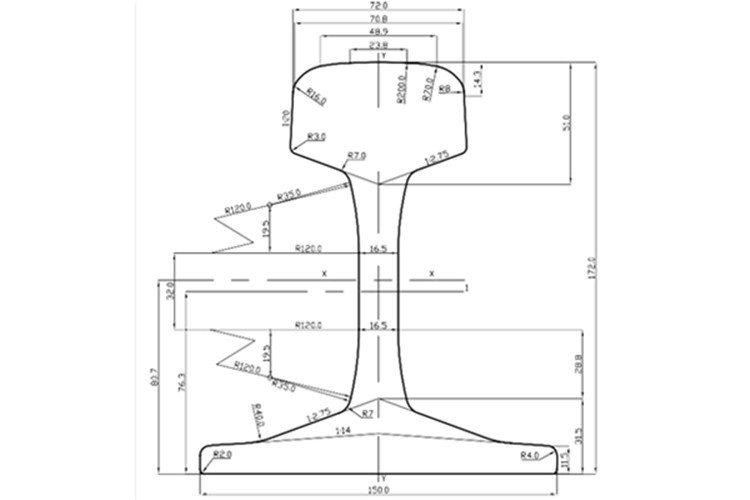

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 60E2 rail is a heavy-duty railway rail profile defined by the European standard (EN 13674-1), widely used in high-speed passenger lines, heavy-haul freight networks, and industrial applications.
