Specifications
Model: 45E1
Standard: BS11:1985
Weight: 45.11 kg/m (90.7 lb/yd)
Material: R260/R350HT
Length: 6–12m, 12.5–25m, or custom lengths upon request
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
45E1(BS90A) | 142.88 | 127.00 | 66.67 | 13.89 | 45.11 |

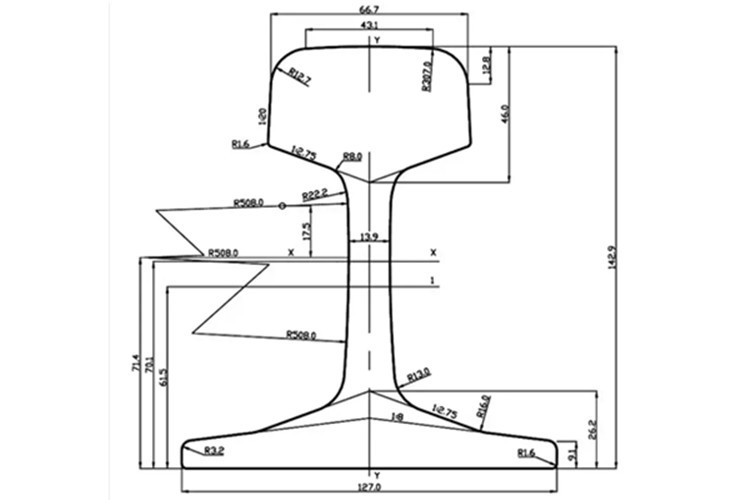

Drawing
Contact Us
Hanzi is China's largest steel rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The 45E1 steel rail (also known as the BS90A rail) is designed for heavy-duty industrial environments, offering a combination of strength, durability, and precision engineering for superior performance. Compliant with the EN 13674-4 standard and manufactured from high-quality steel grades (R200, R260, R260Mn, R350HT), this rail exhibits excellent wear resistance, fatigue strength, and dynamic load-bearing capacity.
Hanzi offers a wide range of steel rails—including light rails, heavy rails (such as the 45E1), and crane rails—available in various standards and specifications.
