Specifications
Model: 57kg Rail
Standard: ISCOR
Weight: 57.38 kg/m
Material: 900A
Length: 6–12m, 12.5–25m, or customized lengths upon request
Rail Type | Dimensions (mm) | Steel Grade | Weight (kg/m) | |||
A (H) | F (B) | C (K) | t (S) | |||
57 | 165 | 140 | 71.1 | 16 | R260 | 57 |

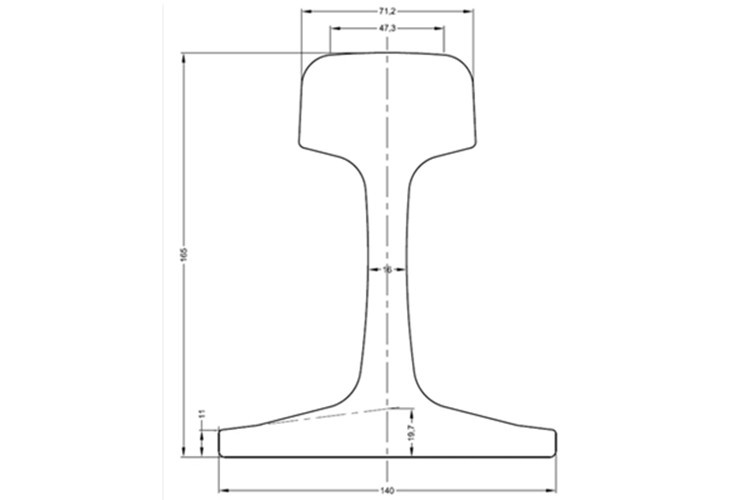

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The ISCOR 57 kg/m rail is manufactured from R260 rail steel and is suitable for demanding freight and mining applications. This rail offers superior wear resistance, minimizes indentation under concentrated loads, and maintains excellent performance under repeated axle cycles.
Hanzi supplies a wide range of rails—including light rails, heavy rails (such as the ISCOR 57kg rail), and crane rails—available in various standards and specifications.
Hanzi is one of China's largest manufacturers of steel sheet piles. It produces high-quality steel sheet piles in various types and sizes, widely used in port construction, offshore breakwaters, deep foundation pit support, integrated pipeline corridors, subways, bridges, tunnels, and other applications.
