Specifications
Model: 48kg Rail
Standard: ISCOR
Weight: 47.6 kg/m
Material: 900A
Length: 6–12m, 12.5–25m, or custom lengths upon request
Model | DIMENSION | Weight | Material | Length | |||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
48 KG | 68 | 150 | 127 | 14 | 47.6 | 900A | 9-25 |

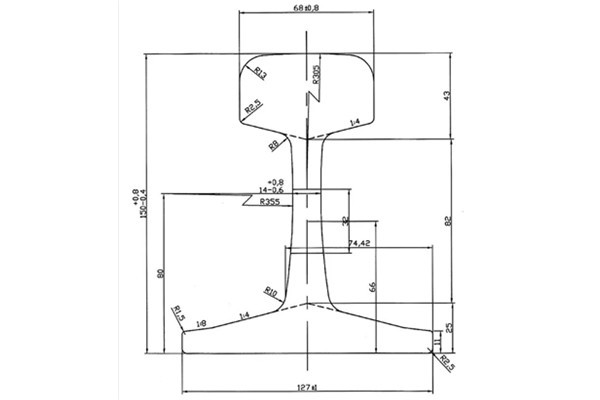

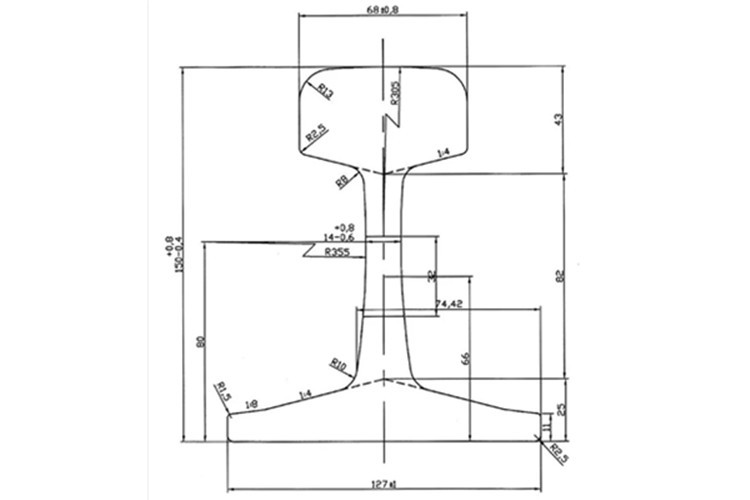

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for further information and a quote.
The ISCOR 48kg rail is manufactured from R260 rail steel and is specifically designed for medium-to-heavy freight, mining transport, and railway hub tracks. Compared to light rails, it offers superior wear resistance and load-bearing capacity while remaining cost-effective for many heavy-duty applications.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the ISCOR 48kg rail), and crane rails—available in various standards and specifications.
