Specifications
Model: KP100 Rail
Standard: Russian Standard GOST 4121-96
Weight: 88.96 kg/m
Material: 50Mn, U71Mn
Length: 6–12 m, 12.5–25 m, or customized lengths upon request
Size * | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm) t | Weight(kg/m) * |
KP100 | 150 | 150 | 100 | 38 | 88.96 |

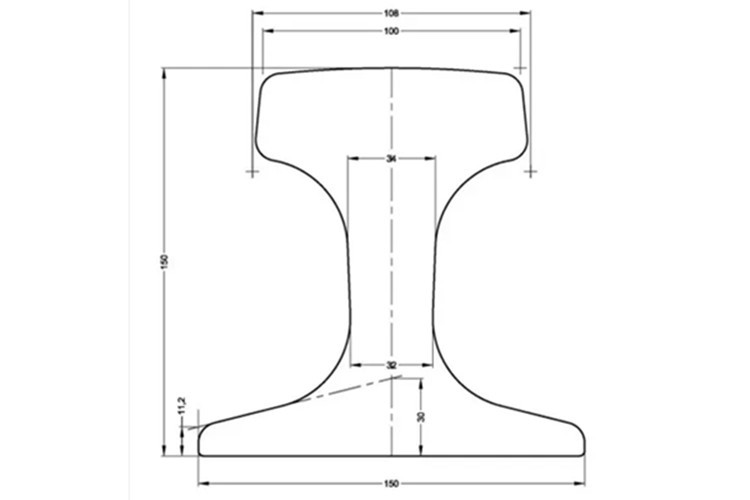

Drawing
Contact Us
Hanzi is China's largest rail manufacturer. If you are interested in our rails or have any questions, please contact us for more information and a quote.
The GOST KP100 rail is a heavy-duty crane rail profile designed for the most demanding lifting applications. Its combination of a deep head, reinforced web, and wide base provides resistance against indentation, fatigue, and misalignment caused by concentrated wheel loads.
Hanzi offers a wide range of rails—including light rails, heavy rails (such as the KP100), and crane rails—available in various standards and specifications.
