Asian Hot-Rolled Steel Sheet Piles

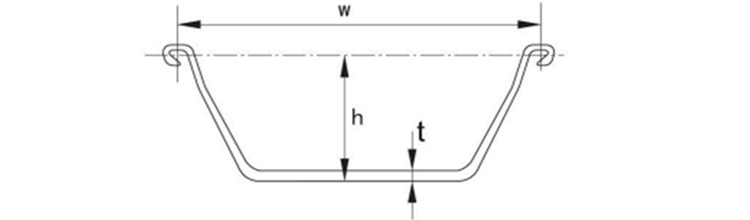

Section | Dimensions | Sectional Area | Mass | Moment
of inertia | Modulus
of section |
Width | Height | Thickness | Pile | Wall |
w | h | t |
mm | Mm | mm | cm2/pile | kg/m | kg/m2 | cm4/m | cm3/m |
ⅠA | 400 | 85 | 8 | 45.21 | 35.5 | 88.8 | 4500 | 529 |
Ⅱ | 400 | 100 | 10.5 | 61.2 | 48 | 120 | 8740 | 874 |
Ⅲ | 400 | 125 | 13 | 76.4 | 60 | 150 | 16800 | 1340 |
ⅢA | 400 | 150 | 13.1 | 74.4 | 58.4 | 146 | 22800 | 1520 |
Ⅳ | 400 | 170 | 15.5 | 97 | 76.1 | 190 | 38600 | 2270 |
ⅤL | 500 | 200 | 24.3 | 133.8 | 105 | 210 | 63000 | 3150 |
ⅥL | 500 | 225 | 27.6 | 153 | 120 | 240 | 86000 | 3820 |
ⅡW | 600 | 130 | 10.3 | 78.7 | 61.8 | 103 | 13000 | 1000 |
ⅢW | 600 | 180 | 13.4 | 104 | 81.6 | 136 | 32400 | 1800 |
ⅣW | 600 | 210 | 18 | 135.3 | 106 | 177 | 56700 | 2700 |
Note: For Asia hot rolled U type sheet pile, most frequently mentioned brand is FSP, NSP, SKSP, JFESP, all mean same sizes.
European Larsen Sheet Piles

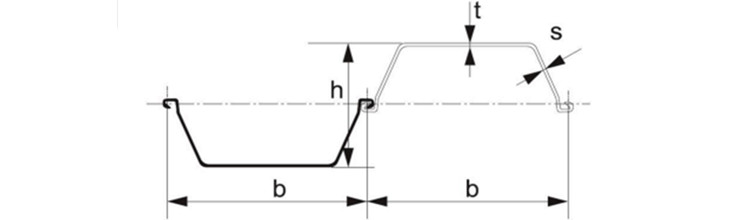

Section | Dimensions | Mass | Moment of inertia | Modulus of section |
Width | Height | Thickness | Per pile | Wall |
w | h | t | s |
mm | mm | mm | mm | kg/m | kg/m2 | cm4/m | cm3/m |
750mm wide |
GHU 14 | 750 | 408 | 10.0 | 8.3 | 77.9 | 104 | 28 690 | 1 415 |
GHU 16 | 750 | 411 | 11.5 | 9.3 | 86.3 | 115 | 32 860 | 1 610 |
GHU 18 | 750 | 441 | 10.5 | 9.1 | 88.5 | 118 | 39 310 | 1 790 |
GHU 20 | 750 | 444 | 12.0 | 10.0 | 96.9 | 129 | 44 450 | 2 010 |
GHU 23 | 750 | 447 | 13.0 | 9.5 | 102.1 | 136 | 50 710 | 2 280 |
GHU 25 | 750 | 450 | 14.5 | 10.2 | 110.4 | 147 | 56 250 | 2 510 |
600mm wide |
GHU 12 | 600 | 360 | 9.8 | 9.0 | 66.1 | 110 | 21 610 | 1 210 |
GHU 12S | 600 | 360 | 10.0 | 10.0 | 71.0 | 118 | 22 670 | 1 270 |
GHU 18-1 | 600 | 430 | 10.2 | 8.4 | 72.6 | 121 | 35 960 | 1 680 |
GHU 18 | 600 | 430 | 11.2 | 9.0 | 76.9 | 128 | 38 660 | 1 810 |
GHU 18+1 | 600 | 430 | 12.2 | 9.5 | 81.1 | 135 | 41 330 | 1 930 |
GHU 22-1 | 600 | 450 | 11.1 | 9.0 | 81.9 | 137 | 46 390 | 2 070 |
GHU 22 | 600 | 450 | 12.1 | 9.5 | 86.1 | 144 | 49 470 | 2 210 |
GHU 22+1 | 600 | 450 | 13.1 | 10.0 | 90.4 | 151 | 52 520 | 2 345 |
GHU 28-1 | 600 | 452 | 14.2 | 9.7 | 97.4 | 162 | 60 590 | 2 690 |
GHU 28 | 600 | 454 | 15.2 | 10.1 | 101.8 | 170 | 64 470 | 2 850 |
GHU 28+1 | 600 | 456 | 16.2 | 10.5 | 106.2 | 177 | 68 390 | 3 010 |
GHU 32-1 | 600 | 452 | 18.5 | 10.6 | 109.9 | 183 | 69 220 | 3 075 |
GHU 32 | 600 | 452 | 19.5 | 11.0 | 114.1 | 190 | 72 330 | 3 210 |
GHU 32+1 | 600 | 452 | 20.5 | 11.4 | 118.4 | 197 | 75 410 | 3 350 |
600mm and 400mm wide |
GHU 6N | 600 | 309 | 6.0 | 6.0 | 41.9 | 70 | 9 680 | 635 |
GHU 7N | 600 | 310 | 6.5 | 6.4 | 44.1 | 74 | 10 460 | 685 |
GHU 7S | 600 | 311 | 7.2 | 6.9 | 46.3 | 77 | 11 550 | 750 |
GHU 7HWS | 600 | 312 | 7.3 | 6.9 | 47.4 | 79 | 11 630 | 755 |
GHU 8N | 600 | 312 | 7.5 | 7.1 | 48.5 | 81 | 12 020 | 780 |
GHU 8S | 600 | 313 | 8.0 | 7.5 | 50.8 | 85 | 12 810 | 830 |
GHU 10N | 600 | 316 | 9.0 | 6.8 | 55.8 | 93 | 15 710 | 1000 |
GHU 11N | 600 | 318 | 10.0 | 7.4 | 60.2 | 100 | 17 460 | 1 105 |
GHU 12N | 600 | 320 | 11.0 | 8.0 | 64.6 | 108 | 19 230 | 1 230 |
GHU 13N | 600 | 418 | 9.0 | 7.4 | 59.9 | 100 | 26 600 | 1 280 |
GHU 14N | 600 | 420 | 10.0 | 8.0 | 64.3 | 107 | 29 420 | 1 410 |
GHU 15N | 600 | 422 | 11.0 | 8.6 | 68.7 | 115 | 32 270 | 1 540 |
GHU 16N | 600 | 430 | 10.2 | 8.4 | 72.6 | 121 | 35 960 | 1 680 |
GHU 18N | 600 | 430 | 11.2 | 9.0 | 76.9 | 128 | 38 660 | 1 810 |
GHU 20N | 600 | 430 | 12.2 | 9.5 | 81.1 | 135 | 41 310 | 1 930 |
GHU 21N | 600 | 450 | 11.1 | 9.0 | 81.9 | 137 | 46 390 | 2 070 |
GHU 22N | 600 | 450 | 12.1 | 9.5 | 86.1 | 144 | 49 470 | 2 210 |
GHU 23N | 600 | 450 | 13.1 | 10.0 | 90.4 | 151 | 52 520 | 2 345 |
GHU 27N | 600 | 452 | 14.2 | 9.7 | 97.4 | 162 | 60 590 | 2 690 |
GHU 28N | 600 | 454 | 15.2 | 10.1 | 101.8 | 170 | 64 470 | 2 850 |
GHU 30N | 600 | 456 | 16.2 | 10.5 | 106.2 | 177 | 68 390 | 3 010 |
GHU 31N | 600 | 452 | 18.5 | 10.6 | 109.9 | 183 | 69 220 | 3 075 |
GHU 32N | 600 | 452 | 19.5 | 11.0 | 114.1 | 190 | 72 330 | 3 210 |
GHU 33N | 600 | 452 | 20.5 | 11.4 | 118.4 | 197 | 75 420 | 3 350 |
GHU 16-400 | 400 | 290 | 12.7 | 9.4 | 62.0 | 155 | 22 600 | 1 570 |
GHU 18-400 | 400 | 292 | 15.0 | 9.7 | 69.3 | 173 | 26 100 | 1 795 |
Section | Dimensions | Mass | Moment of inertia | Modulus of section |
Width | Height | Thickness | Per pile | Wall |
w | h | t | s |
mm | mm | mm | mm | kg/m | kg/m2 | cm4/m | cm3/m |
GHL 600 | 600 | 150 | 9.5 | 9.5 | 56.4 | 94 | 3825 | 510 |
GHL 600K | 600 | 150 | 10 | 10 | 59.4 | 99 | 4050 | 540 |
GHL 601 | 600 | 310 | 7.5 | 6,4 | 46.8 | 78 | 11520 | 745 |
GHL 602 | 600 | 310 | 8.2 | 8 | 53.4 | 89 | 12870 | 830 |
GHL 603 | 600 | 310 | 9.7 | 8.2 | 64.8 | 108 | 18600 | 1200 |
GHL 603K | 600 | 310 | 10 | 9 | 68.1 | 113.5 | 19220 | 1240 |
GHL 603 10/10 | 600 | 310 | 10 | 10 | 69.6 | 116 | 19530 | 1260 |
GHL 604 | 600 | 380 | 10 | 9 | 73.8 | 123 | 30400 | 1600 |
GHL 605 | 600 | 420 | 13 | 9.2 | 85.5 | 142.5 | 43890 | 2090 |
GHL 606 | 600 | 435 | 14.4 | 9.2 | 94.2 | 157 | 54375 | 2500 |
GHL 607 | 600 | 452 | 19 | 10.6 | 114 | 190 | 72320 | 3200 |
GHL 703 | 700 | 400 | 9.5 | 8 | 67.5 | 96.4 | 24200 | 1210 |
GHL 716 | 700 | 440 | 10.2 | 9.5 | 79.9 | 114.2 | 35200 | 1600 |
GHL 720 | 750 | 450 | 12 | 10 | 96.4 | 128.5 | 45000 | 2000 |
* Section Modulus Range
1100-5000 cm³/m
* Width Range (Single)
580-800 mm
* Thickness Range
5-16 mm
* Production Standard
BS EN 10249 JIS
* Steel Grade
SY295, SY390, and S355GP for Type II to VIL
Steel Grades VL506A to VL606K for S240GP, S275GP, S355GP, and S390
* Length
Maximum 27.0 m
Standard stock lengths 6m, 9m, 12m, 15m
*Delivery Options
Pairs can be loose, welded, or crimped.
Lifting holes.
Per container (11.8 cubic meters or less) or bulk.
Anti-corrosion coating.
*Corner piles
Box piles can be made from a single U-section, increasing the bending resistance of the pile wall without changing the pile profile. Corners and joints can be welded interlocking or cut and welded to the end profile.
