Specifications

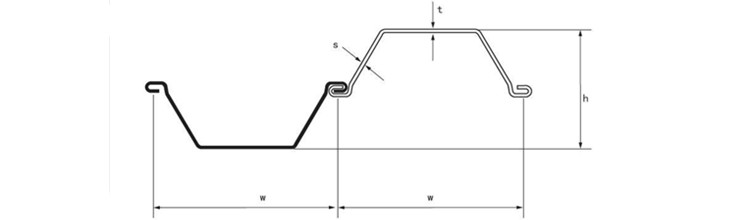

Section | Dimensions | Mass | Moment of inertia | Modulus of Section |
Width | Height | Thickness | Per pile | Wall |
w | h | t | s |
mm | mm | mm | mm | kg/m | kg/m2 | cm4/m | cm3/m |
GPU 3-350a | 350 | 140 | 8 | 8 | 37.4 | 106.9 | 2073 | 296 |
GPU 3-350b | 350 | 145 | 9 | 9 | 40.6 | 116 | 2263 | 323 |
GPU 4-350 | 350 | 150 | 10 | 10 | 45.6 | 130.3 | 2460 | 351 |
GPU 4-600 | 600 | 170 | 6 | 6 | 40 | 66.6 | 3719 | 443 |
GPU 5-400 | 400 | 170 | 7 | 7 | 35.5 | 88.8 | 4321 | 502 |
GPU 5-600a | 600 | 170 | 7 | 7 | 46.7 | 77.8 | 4386 | 516 |
GPU 5-600b | 600 | 150 | 9 | 9 | 59.4 | 99 | 4112 | 546 |
GPU 6-600a | 600 | 150 | 9.5 | 9.5 | 63.9 | 106.5 | 4231 | 561 |
GPU 6-600b | 600 | 150 | 10 | 10 | 67 | 111.7 | 4450 | 592 |
GPU 6-600c | 600 | 170 | 8 | 8 | 53.3 | 88.8 | 5091 | 592 |
GPU 6-600d | 600 | 226 | 7 | 7 | 45.6 | 76 | 6780 | 600 |
GPU 6-500 | 500 | 240 | 8 | 8 | 48.1 | 96.2 | 7516 | 626 |
GPU 7-600a | 600 | 280 | 6 | 6 | 42.2 | 70.3 | 9048 | 655 |
GPU 7-600b | 600 | 226 | 7.5 | 7.5 | 49.9 | 83.1 | 7570 | 670 |
GPU 7-600c | 600 | 310 | 6.5 | 6.5 | 44.1 | 73.5 | 10450 | 675 |
GPU 7-600d | 600 | 280 | 6.5 | 6.5 | 44.3 | 74 | 9580 | 685 |
GPU 7-750 | 750 | 320 | 5 | 5 | 42.8 | 57 | 11089 | 693 |
GPU 7-500 | 500 | 240 | 10 | 10 | 59.6 | 119.2 | 8379 | 698 |
GPU 7-600e | 600 | 240 | 8 | 8 | 55 | 91.7 | 8570 | 714 |
GPU 7-600f | 600 | 310 | 7 | 7 | 46.8 | 78 | 11520 | 745 |
GPU 8-600a | 600 | 280 | 7 | 7 | 48.7 | 81 | 10830 | 775 |
GPU 8-500 | 500 | 240 | 12 | 12 | 76.3 | 152.6 | 9420 | 785 |
GPU 8-600b | 600 | 240 | 9 | 9 | 62.5 | 104.2 | 9640 | 804 |
GPU 8-600c | 600 | 313 | 7.6 | 7.6 | 50.8 | 84.6 | 12800 | 820 |
GPU 8-750 | 750 | 320 | 6 | 6 | 51.1 | 68.1 | 13191 | 824 |
GPU 8-600c | 600 | 280 | 8 | 8 | 54.5 | 90.9 | 11620 | 830 |
GPU 8-600d | 600 | 310 | 7.6 | 7.6 | 53.4 | 89 | 12931 | 835 |
GPU 9-600a | 600 | 240 | 10 | 10 | 70 | 116.7 | 10710 | 894 |
GPU 9-600b | 600 | 280 | 8.2 | 8.2 | 58.8 | 98 | 12971 | 926 |
GPU 9-600c | 600 | 360 | 6.6 | 6.6 | 49.5 | 82 | 16930 | 940 |
GPU 10-750 | 750 | 320 | 7 | 7 | 59.3 | 79 | 15256 | 953 |
GPU 10-600a | 600 | 240 | 12 | 12 | 89.2 | 148.7 | 11521 | 960 |
GPU 10-900 | 900 | 320 | 7 | 7 | 67.5 | 75 | 15571 | 973 |
GPU 10-600b | 600 | 310 | 8 | 8 | 56.5 | 94.2 | 15697 | 1012 |
GPU 10-600c | 600 | 280 | 9 | 9 | 65.1 | 108.5 | 14537 | 1037 |
GPU 10-700 | 700 | 310 | 9 | 9 | 71.2 | 101.7 | 16270 | 1049 |
GPU 11-600a | 600 | 360 | 7.3 | 7.3 | 53.8 | 90 | 18960 | 1055 |
GPU 11-600b | 600 | 240 | 14 | 14 | 105 | 175 | 12772 | 1064 |
GPU 11-600c | 600 | 318 | 8 | 8 | 60.2 | 100 | 17450 | 1095 |
GPU 11-600d | 600 | 360 | 8.5 | 8.5 | 61.8 | 303 | 19760 | 1095 |
GPU 12-600a | 600 | 360 | 8 | 8 | 58.1 | 97 | 20960 | 1165 |
GPU 12-900 | 900 | 360 | 8 | 8 | 80.7 | 89.6 | 21028 | 1181 |
GPU 12-600b | 600 | 310 | 9 | 9 | 64.8 | 108 | 18600 | 1200 |
GPU 12-600c | 600 | 360 | 8.7 | 8.7 | 66.1 | 110.1 | 21615 | 1205 |
GPU 12-700 | 700 | 400 | 8 | 8 | 67.5 | 96.4 | 24200 | 1210 |
GPU 12-600d | 600 | 380 | 8.5 | 8.5 | 66.1 | 110.2 | 22946 | 1216 |
GPU 12-600e | 600 | 310 | 9.5 | 9.5 | 68.1 | 113.5 | 19220 | 1240 |
GPU 13-575 | 575 | 360 | 10 | 10 | 70.2 | 122 | 22500 | 1250 |
GPU 13-600a | 600 | 360 | 9 | 9 | 69.6 | 116 | 22680 | 1269 |
GPU 13-600b | 600 | 418 | 7.8 | 7.8 | 59.9 | 99.8 | 26590 | 1270 |
GPU 13-600c | 600 | 310 | 9.6 | 9.6 | 69.6 | 116 | 19722 | 1271 |
GPU 13-600d | 600 | 360 | 9.2 | 9.2 | 71 | 118 | 22697 | 1273 |
GPU 13-600e | 600 | 360 | 9.5 | 9.5 | 73.2 | 122 | 23025 | 1286 |
GPU 13-600f | 600 | 360 | 10 | 10 | 77 | 128.3 | 23124 | 1293 |
GPU 13-600g | 600 | 310 | 10 | 10 | 77.2 | 128.7 | 20316 | 1305 |
GPU 13-500 | 500 | 340 | 10 | 10 | 70.7 | 141.4 | 22205 | 1315 |
GPU 13-900 | 900 | 360 | 9 | 9 | 90.5 | 100.6 | 23770 | 1328 |
GPU 13-600h | 600 | 400 | 8 | 8 | 65.3 | 108.8 | 26697 | 1335 |
GPU 13-700 | 700 | 400 | 9 | 9 | 75.6 | 108 | 26800 | 1340 |
GPU 14-750 | 750 | 480 | 8 | 8 | 75.3 | 100.4 | 34498 | 1449 |
GPU 15-900 | 900 | 360 | 10 | 10 | 100.3 | 111.4 | 26538 | 1474 |
GPU 15-600 | 600 | 400 | 9 | 9 | 73.4 | 122.4 | 29867 | 1493 |
GPU 16-400 | 400 | 290 | 10 | 10 | 62 | 154.9 | 22580 | 1560 |
GPU 16-600a | 600 | 380 | 9.5 | 9.5 | 73.8 | 123 | 30400 | 1600 |
GPU 16-600b | 600 | 380 | 9.7 | 9.7 | 74.7 | 124 | 30400 | 1600 |
GPU 16-750a | 750 | 411 | 9.5 | 9.5 | 86.3 | 115 | 32850 | 1600 |
GPU 16-750b | 750 | 480 | 9 | 9 | 84.5 | 112.6 | 38909 | 1628 |
GPU 17-600a | 600 | 400 | 10 | 10 | 81.9 | 136.5 | 33011 | 1651 |
GPU 17-600b | 600 | 430 | 9 | 9 | 72.6 | 121 | 35950 | 1670 |
GPU 17-700 | 700 | 400 | 10 | 10 | 88 | 125.7 | 33521 | 1675 |
GPU 17-600c | 600 | 350 | 12 | 12 | 98.5 | 164.1 | 29528 | 1687 |
GPU 18-600a | 600 | 487 | 8 | 8 | 70.8 | 118 | 43422 | 1790 |
GPU 18-600b | 600 | 430 | 9.5 | 9.5 | 76.9 | 128.2 | 38650 | 1800 |
GPU 19-900 | 900 | 350 | 12 | 12 | 132 | 146.7 | 32887 | 1890 |
GPU 19-600 | 600 | 430 | 10 | 10 | 81.1 | 135.2 | 41320 | 1920 |
GPU 20-500 | 500 | 420 | 10 | 10 | 77.5 | 155 | 42000 | 2000 |
GPU 20-750a | 750 | 444 | 10.5 | 10.5 | 96.9 | 129.2 | 44440 | 2000 |
GPU 20-600a | 600 | 430 | 10.3 | 10.3 | 84.3 | 140.5 | 43000 | 2000 |
GPU 20-600b | 600 | 487 | 9 | 9 | 79.7 | 132.7 | 48537 | 2000 |
GPU 20-600c | 600 | 420 | 10 | 10 | 83.5 | 139.2 | 42420 | 2020 |
GPU 20-600d | 600 | 420 | 10.5 | 10.5 | 86.7 | 144.5 | 42630 | 2030 |
GPU 20-650 | 650 | 500 | 10 | 10 | 94.6 | 145.6 | 50819 | 2033 |
GPU 20-750b | 750 | 536 | 8 | 8 | 83.5 | 111.4 | 54660 | 2040 |
GPU 20-750c | 750 | 480 | 10 | 10 | 97.4 | 129.8 | 48985 | 2041 |
GPU 20-900 | 900 | 350 | 13 | 13 | 142.6 | 158.5 | 35789 | 2045 |
GPU 21-600 | 600 | 450 | 9.5 | 9.5 | 81.9 | 136.5 | 46380 | 2060 |
GPU 22-600a | 600 | 450 | 10 | 10 | 86.1 | 143.6 | 49460 | 2200 |
GPU 22-600b | 600 | 486 | 10 | 10 | 88.5 | 147.4 | 53584 | 2200 |
GPU 22-650 | 650 | 500 | 11 | 11 | 104.8 | 161.2 | 55383 | 2215 |
GPU 23-750a | 750 | 447 | 10.7 | 10.7 | 102.1 | 136.1 | 50700 | 2270 |
GPU 23-750b | 750 | 538 | 9 | 9 | 92.8 | 123.8 | 62195 | 2304 |
GPU 23-600 | 600 | 450 | 10.5 | 10.5 | 90.4 | 150.7 | 52510 | 2335 |
GPU 24-650 | 650 | 500 | 12 | 12 | 114.3 | 175.8 | 60145 | 2406 |
GPU 25-600a | 600 | 435 | 11 | 11 | 94.2 | 157 | 54375 | 2500 |
GPU 25-600b | 600 | 350 | 14 | 14 | 119.3 | 198.8 | 43895 | 2508 |
GPU 25-750 | 750 | 540 | 10 | 10 | 103.1 | 137.5 | 68820 | 2549 |
GPU 26-500 | 500 | 420 | 12 | 12 | 92.7 | 185.4 | 53610 | 2550 |
GPU 26-700 | 700 | 420 | 12 | 12 | 116.2 | 166 | 53721 | 2566 |
GPU 26-750 | 750 | 450 | 11.2 | 11.2 | 113.2 | 151 | 58140 | 2580 |
GPU 26-610 | 610 | 490 | 12 | 12 | 109.9 | 180.1 | 63503 | 2590 |
GPU 27-600 | 600 | 452 | 11 | 11 | 97.4 | 162.3 | 60580 | 2680 |
GPU 27-750 | 750 | 576 | 10 | 10 | 109.9 | 146.5 | 77690 | 2700 |
GPU 28-750a | 750 | 540 | 11 | 11 | 113.5 | 151.3 | 75389 | 2792 |
GPU 28-750b | 750 | 562 | 11 | 11 | 119.6 | 159.4 | 78809 | 2805 |
GPU 28-600 | 600 | 454 | 11.5 | 11.5 | 101.8 | 169.6 | 64460 | 2840 |
GPU 30-750a | 750 | 578 | 11 | 11 | 120.9 | 161.2 | 85860 | 2970 |
GPU 30-600 | 600 | 456 | 12 | 12 | 106.2 | 177.1 | 68380 | 3000 |
GPU 30-750b | 750 | 540 | 12 | 12 | 124.1 | 165.4 | 81847 | 3031 |
GPU 30-750c | 750 | 564 | 12 | 12 | 132.5 | 176.6 | 85879 | 3045 |
GPU 31-600 | 600 | 452 | 12.2 | 12.2 | 109.9 | 183.2 | 69210 | 3065 |
GPU 32-750 | 750 | 645 | 11 | 11 | 122.2 | 162.9 | 112800 | 3196 |
GPU 32-600 | 600 | 452 | 12.5 | 12.5 | 114 | 190 | 72320 | 3200 |
GPU 33-750 | 750 | 580 | 12 | 12 | 131.9 | 175.8 | 94300 | 3250 |
GPU 33-700a | 700 | 560 | 12 | 12 | 129.5 | 185 | 90825 | 3255 |
GPU 33-700b | 700 | 600 | 12 | 12 | 131.9 | 188.4 | 99298 | 3332 |
GPU 33-600 | 600 | 452 | 13 | 13 | 118.4 | 197.3 | 75410 | 3340 |
GPU 35-750 | 750 | 608 | 12 | 12 | 136.1 | 181.5 | 105080 | 3466 |
GPU 35-700 | 700 | 560 | 13 | 13 | 143.6 | 205.1 | 97775 | 3502 |
GPU 36-700 | 700 | 600 | 13 | 13 | 142.9 | 204.1 | 108656 | 3634 |
GPU 37-700 | 700 | 600 | 13.5 | 13.5 | 147.8 | 211.1 | 111832 | 3740 |
GPU 38-750 | 750 | 610 | 13 | 13 | 151 | 201.3 | 114306 | 3756 |
GPU 39-700 | 700 | 600 | 14 | 14 | 153.9 | 219.8 | 116695 | 3890 |
GPU 40-700 | 700 | 580 | 15 | 15 | 167.4 | 239.1 | 115729 | 4000 |
GPU 40-750 | 750 | 610 | 14 | 14 | 163.9 | 218.5 | 122680 | 4031 |
GPU 43-750 | 750 | 610 | 15 | 15 | 177 | 236 | 132290 | 4348 |
GPU 44-750 | 750 | 615 | 16 | 16 | 186.4 | 248.5 | 133643 | 4355 |
GPU 46-750 | 750 | 630 | 16 | 16 | 192.5 | 256.7 | 145794 | 4638 |
Note:This table is only part of our sizes.We have over 1000 different sizes.We can adjust our machine to produce in any width,Height and thickness.Please contact us if your size is not in above table.
* Section Modulus Range
1100-5000 cc/m
* Width Range (Single)
580-800 mm
* Thickness Range
5-16 mm
* Production Standards
BS EN 10249 JIS
* Steel Grades
Q235B, Q345B, Q345C, Q390B, Q420B
S235JR, S275JR, S355JR, S355JO
ASTM A572 Gr42, Gr50, Gr60
Others available upon request
* Length
Maximum 35.0 m
Can produce any project-specific length
* Delivery Options
Pairs can be loose, welded, or crimped
Anti-corrosion coating
* Corner Piles
Hanzi offers three Corner Pile configuration options. Option 1 is often used when the installation contractor prefers to construct the Corner Piles themselves on-site based on the construction layout. However, this results in wasted Corner Piles. Option 2 allows for welding either at the factory or on-site, giving the installation contractor greater flexibility in Corner Pile placement. Option 3 eliminates the need for welding and improves accuracy at corners that deviate from the typical 90° angle.
