Specifications
Parameter | Specification Range | Standard / Notes |
Steel Grade | Q295, Q345, Q390, S355JR, S390JR, ASTM A572 | GB/T, EN, ASTM |
Section Type | U-type, Z-type, Straight Web | GB/T 20933 |
Section Modulus | 400-4500 cm³/m | Per meter of wall |
Moment of Inertia | 8000-180000 cm⁴/m | Per meter of wall |
Pile Width | 400-800 mm | ±2% tolerance |
Pile Height | 75-420 mm | ±2% tolerance |
Web Thickness | 6.0-24.0 mm | ±5% tolerance |
Flange Thickness | 7.0-26.5 mm | ±5% tolerance |
Interlock Type | Larssen, Modified Larssen, Straight | Standard designs |
Standard Length | 6000-24000 mm | Custom lengths available |
Weight per Meter | 40-240 kg/m | Theoretical weight |
Coating Weight | 200-600 g/m² | For galvanized piles |

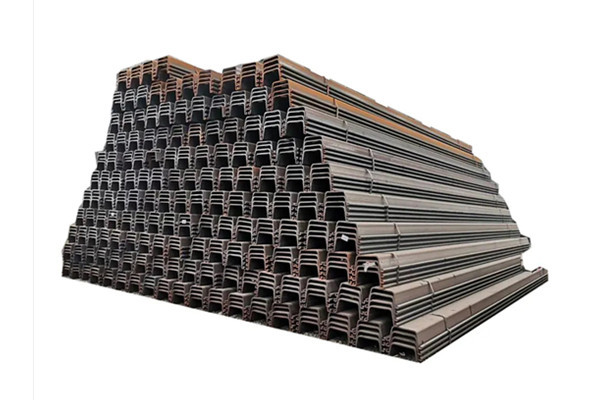

Advantages of U-Type Steel Sheet Piles:
1. A diverse range of sections with varying geometric characteristics allows for the selection of the most technically and economically suitable profile for a specific project.
2. The symmetrical shape of individual elements makes these piles particularly convenient for reuse.
3. Assembling and crimping piles into pairs at the factory enhances installation quality and performance.
4. Tie-rods and swivel accessories can be easily attached, even underwater.
5. Excellent corrosion resistance, with the thickest steel sections located on the outer edges of the profile.
