Specifications

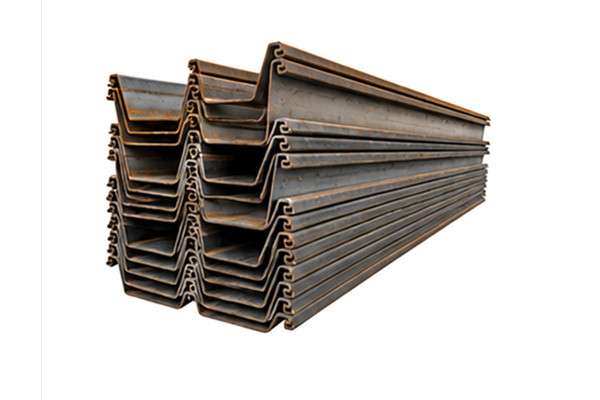

Hot rolled U-shaped steel sheet pile | ||||||||||||||||
Model | valid | valid | web | Single Pile | Pile surface per meter | HOESCH specifications | ||||||||||
Section | theory | moment of inertia | Section | moment of inertia | Section | Section | theory | moment of inertia | Section | moment of inertia section | ||||||
mm | mm | cm² | kg/m | cm² | cm | cm² | cm | cm² | kg/m | cm² | cm³ | cm² | cm³ | |||
PU400′100 | 400 | 100 | 10.5 | 61.18 | 48 | 1240 | 152 | 12200 | 562 | 153 | 120.1 | 8740 | 874 | 91676 | 2199 | LARSSEN408 |
PU400*125 | 400 | 125 | 13 | 76.32 | 60 | 2220 | 223 | 15133 | 691 | 191 | 149.9 | 16800 | 1340 | 114198 | 2725 | LARSSEN413 |
PU400′170 | 400 | 170 | 15.5 | 96.99 | 76.1 | 4670 | 362 | 18792 | 862 | 2425 | 190.4 | 38600 | 2270 | 143939 | 343 | LARSSEN422 |
PU600°180 | 600 | 180 | 13.4 | 103.9 | 81.6 | 5220 | 376 | 41070 | 1367 | 173.2 | 136 | 32400 | 1800 | 224222 | 3633 | LARSSEN618C |
PU600204.5 | 600 | 204.5 | 9.4 | 88.1 | 69.2 | 6200 | 426 | 38590 | 1216 | 146.9 | 1153 | 32858 | 1605 | 196510 | 3183 | LARSSEN616 |
PU600205 | 600 | 205 | 10 | 91.8 | 72.1 | 6434 | 438 | 39758 | 1253 | 153 | 120.1 | 34645 | 1690 | 203967 | 3304 | LARSSEN617 |
PU502055 | 600 | 205.5 | 10.9 | 974 | 76.4 | 6788 | 455 | 41541 | 1309 | 162.3 | 1274 | 37348 | 1817 | 179398 | 3488 | LARSSEN618 |
PU650020551 | 600 | 205.5 | 13 | 104.7 | 82.2 | 6933 | 450 | 41877 | 1320 | 174.5 | 137 | 42480 | 2067 | 272248 | 4411 | LARSSEN621T |
PU600′206 | 600 | 206 | 14 | 110.7 | 86.9 | 7267 | 466 | 43678 | 1377 | 184.5 | 144.8 | 45440 | 2205 | 238342 | 3861 | LARSSEN622T |
PU600′215 | 600 | 215 | 14 | 114 | 89.5 | 8235 | 510 | 46724 | 1464 | 190 | 1492 | 50376 | 2343 | 249632 | 4031 | LARSSEN523 |
PU600218 | 600 | 218 | 14.4 | 19.8 | 94 | 8940 | 542 | 46941 | 1470 | 199.8 | 156.7 | 54771 | 2512 | 252400 | 4076 | LARSSEN625 |
PU600~218.5 | 600 | 218.5 | 15.4 | 126 | 98.9 | 9350 | 562 | 47480 | 1487 | 209.9 | 164.8 | 58118 | 2660 | 259308 | 4187 | LARSSEN526 |
PU600210 | 600 | 210 | 18 | 135.5 | 1062 | 8630 | 539 | 50776 | 1600 | 225.5 | 177 | 56700 | 2700 | 287943 | 4665 | LARSSEN627C |
PU600*225.5 | 600 | 225.5 | 18 | 139 | 109.1 | 10452 | 603 | 53141 | 1674 | 231.7 | 181.9 | 69300 | 3073 | 297053 | 4811 | LARSSEN631 |
PU600'226 | 600 | 226 | 19 | 145.1 | 114 | 10873 | 624 | 55085 | 1735 | 241.7 | 190 | 72810 | 3222 | 309483 | 5012 | LARSSEN632 |
PU600*26.5 | 600 | 226.5 | 19.8 | 150 | 117.7 | 11606 | 668 | 56598 | 1783 | 250 | 196.2 | 75618 | 3340 | 319290 | 5170 | LARSSEN633 |
PU600′225 | 600 | 225 | 22.3 | 171.8 | 134.9 | 11830 | 666 | 64310 | 2056 | 286.3 | 224.8 | 87238 | 3877 | 364925 | 5893 | LARSSEN639 |
PU750*225a | 750 | 223.5 | 13 | 130.1 | 102.1 | 9830 | 579 | 78841 | 2007 | 173 | 136.1 | 50700 | 2270 | 348902 | 4544 | LARSSEN723 |
PU750225 | 750 | 225 | 14.6 | 140.6 | 110.4 | 10445 | 602 | 83297 | 2121 | 187.5 | 147.2 | 56301 | 2502 | 374787 | 4881 | LARSSEN725 |
Advantages of Larssen Steel Sheet Piles
1. Optimized interlock geometry for seamless installation
2. Weight-optimized design for cost-effective planning
3. Improved web geometry for enhanced structural performance
4. Reinforced corners for greater durability and stability
Need Further Assistance
We look forward to your inquiries regarding our sheet pile wall products. We are also happy to provide comprehensive consultation and value-added services. Please feel free to contact us—even for urgent requirements—we are always at your service!
